• 4 Stroke 4 Stroke
  • Vertical Shaft Vertical Shaft
  • Overhead valve Overhead valve
  • Single Cylinder Single Cylinder
  • Air Cooled Air Cooled
  • Pressurised lubrication
  • Dual element air cleaner
  • Internally vented carburetor
  • Cast iron cylinder liner
  • Automatic compression release
  • Combined crankcase design
  • Rotating grass screen
Show more
Support
  • Overview
  • Options
  • Dimensional Specifications
  • Related Models
  • Related Applications
Find A Dealer
Overview

Technical Specifications

Engine Type Air-cooled, 4-stroke, Vertical shaft, OHV
Number of cylinders 1
Bore x stroke 65 x 54 mm
Displacement 179 cm³
Max. power 3.4 kW (4.5 hp) / 3600 rpm
Max. torque 10.0 Nm (7.3 ft.lbs) / 2400 rpm
Fuel tank capacity (litres) 1.7 litres
Oil capacity (litres) 0.65 litres
Dry weight 17.0 kg
Dimensions (L x W x H) (mm) 425 x 323 x 286 (with tank)
392 x 323 x 286 (without tank)

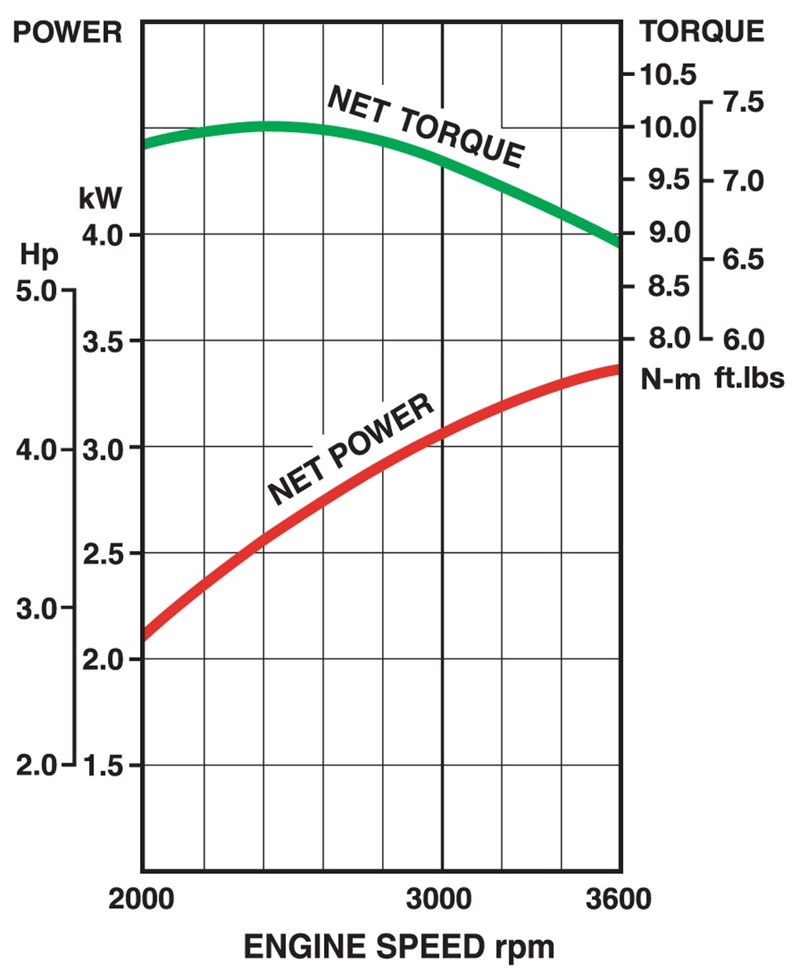

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves
Options
  • Shaft variations
  • Fuel tank
  • Various speed control options
  • Spin-on oil filter
  • Fuel tap
  • Flywheel brake
  • M10 threaded mounting holes
