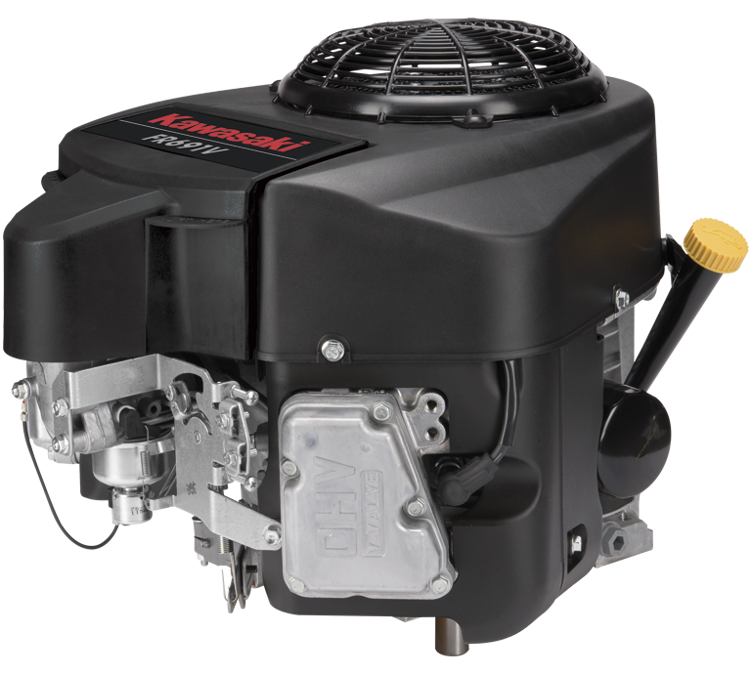

FR691V

4 Stroke
Vertical Shaft
V Twin
Overhead valve
Air Cooled

Bendix type starter
High performance lubrication system
Cast iron cylinder liners
Internally vented carburetor with fuel shut-off solenoid
Automatic compression release
90 degree V-twin

Electronic spark ignition
Spherical combustion chamber
Overhead V-valves
Rotating grass screen

Rotating grass screen prevents debris build-up in cooling system High performance lubrication system for maximum engine durability Overhead V-valve configuration delivers greater efficiency and power

Overview
Options

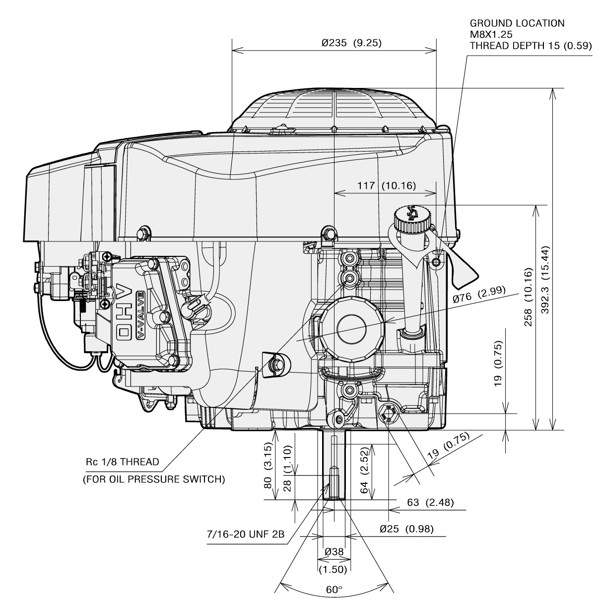

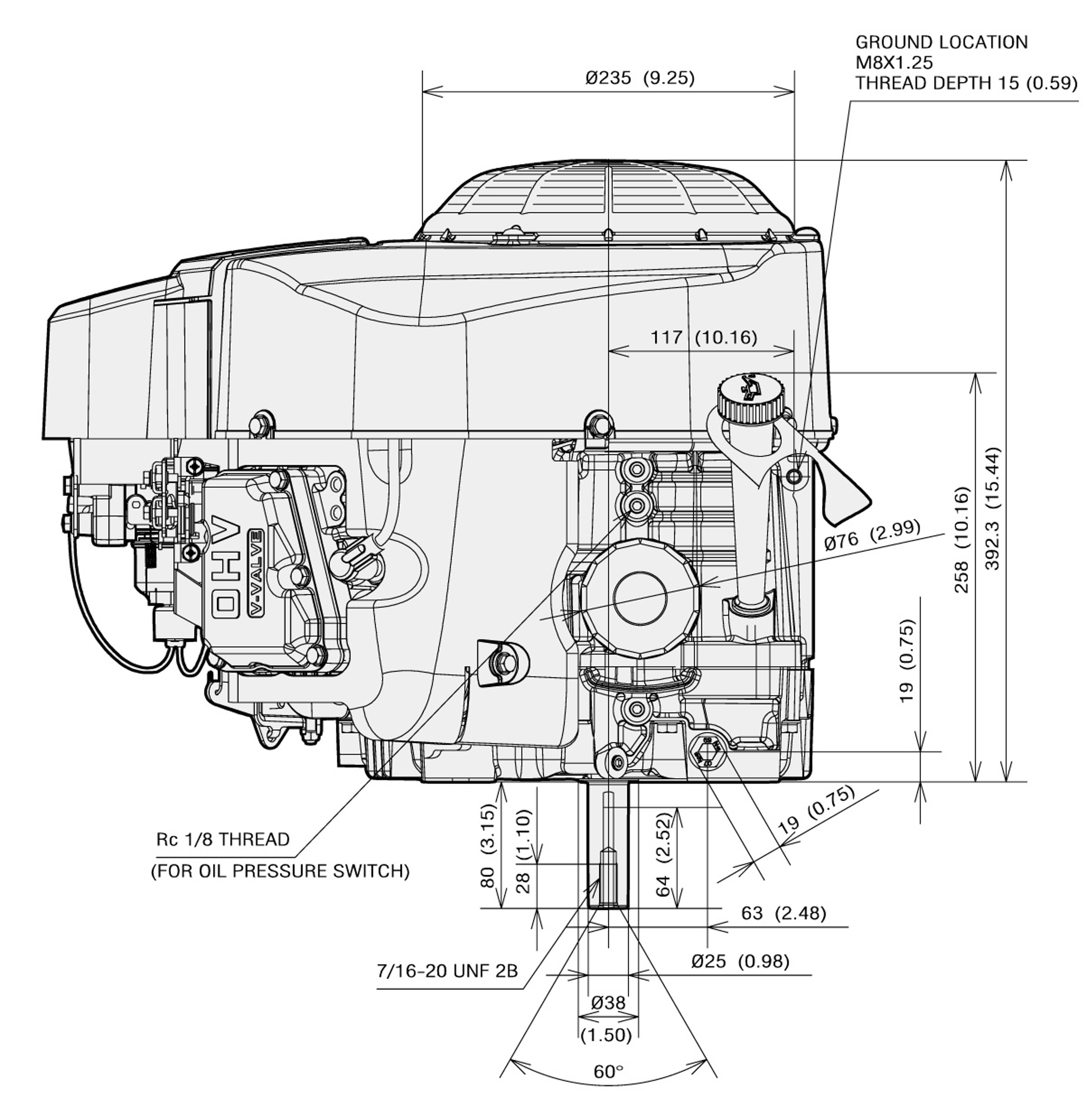

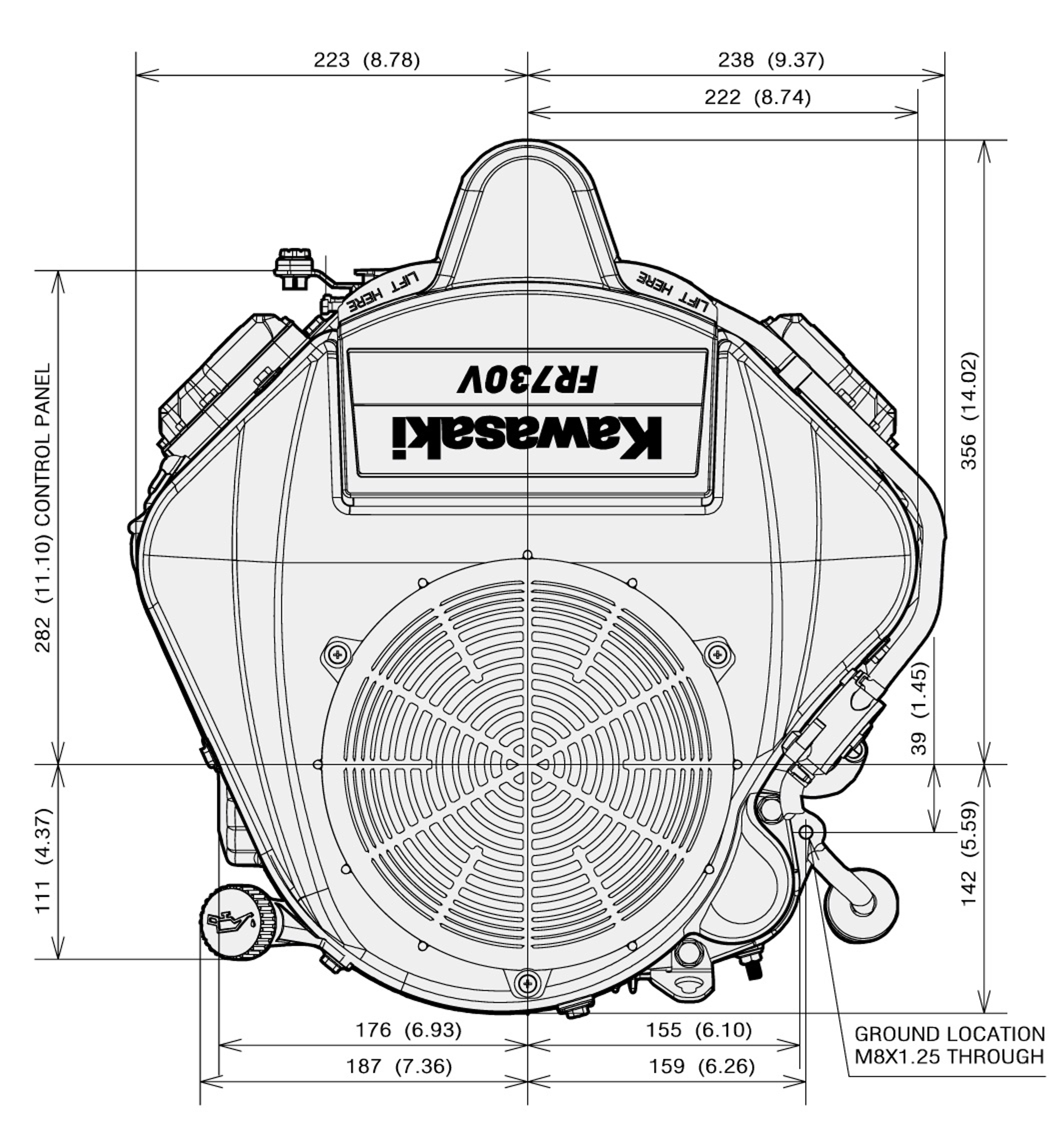

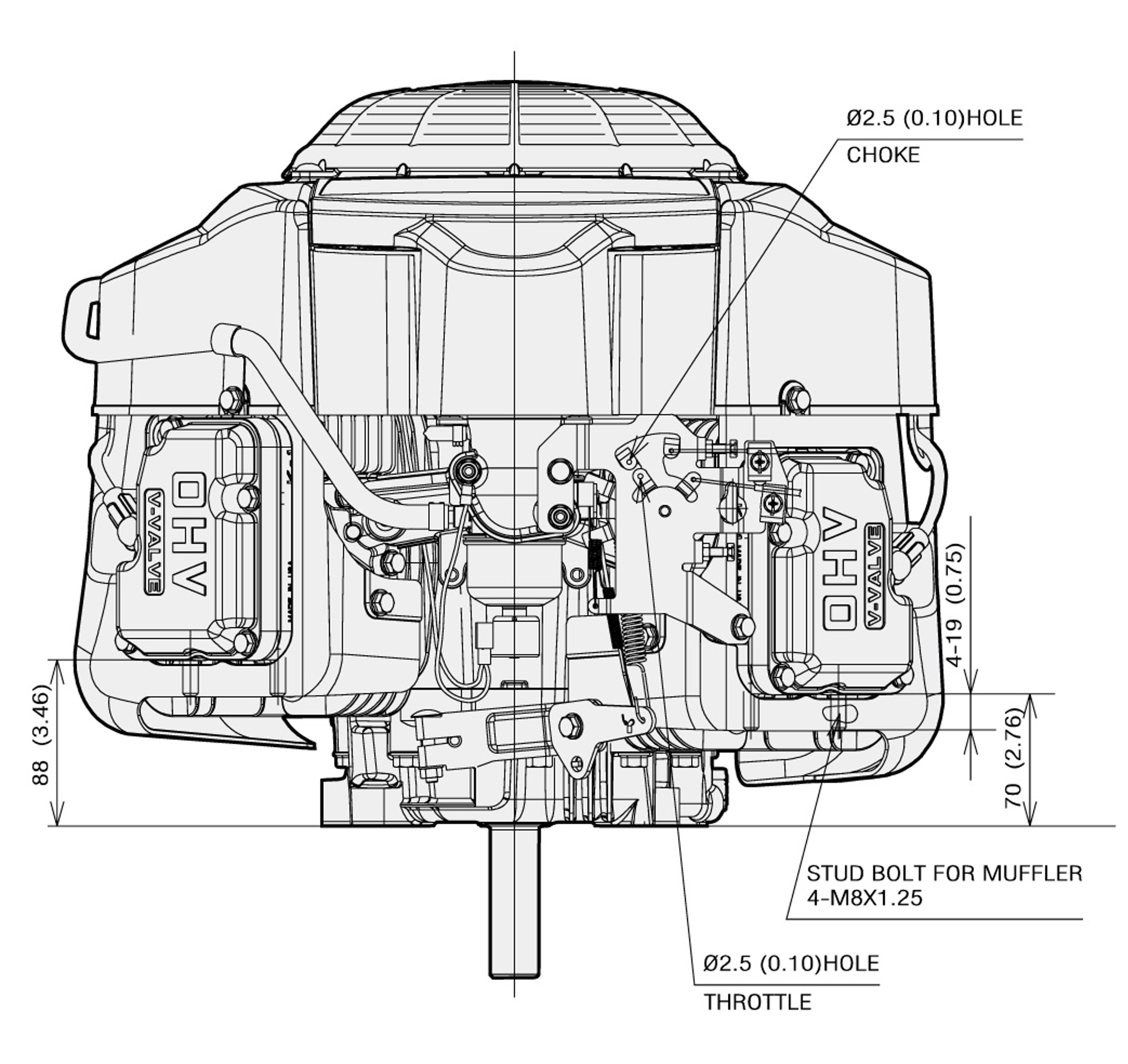

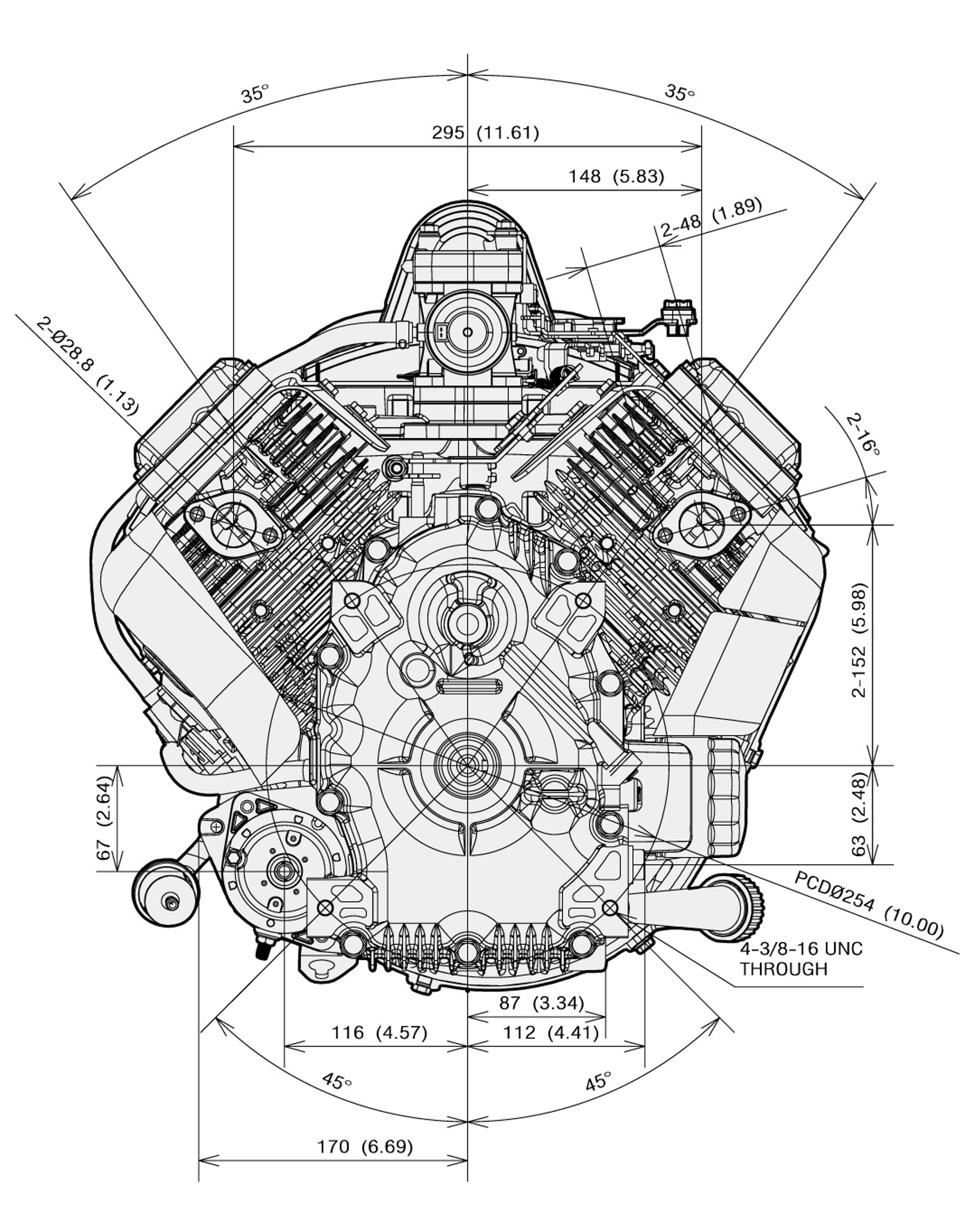

Dimensional Specifications
Related Models
Related Applications

Find A Dealer

Overview

Technical Specifications

Engine Type	Air-cooled, 4-stroke, V-twin, Vertical shaft, OHV
Number of cylinders	2
Bore x stroke	78 x 76 mm
Displacement	726 cm³
Max. power	15.4 kW (20.6 hp) / 3600 rpm
Max. torque	53.7 Nm (39.6ft.lbs) / 2000 rpm
Oil capacity (litres)	2.0 litres
Dry weight	40.0 kg
Dimensions (L x W x H) (mm)	501 x 466 x 392

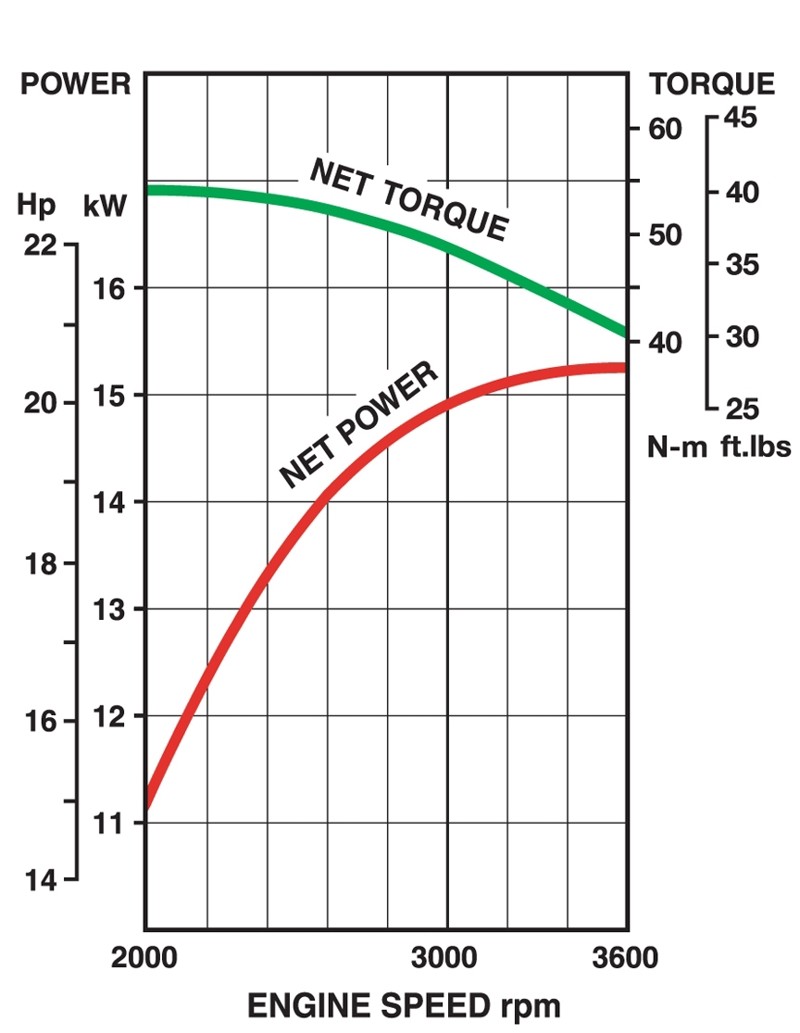

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
