• 2 Stroke 2 Stroke
  • Horizontal Shaft Horizontal Shaft
  • Single Cylinder Single Cylinder
  • Air Cooled Air Cooled
  • Centrifugal clutch installed
  • 50:1 fuel mixture
  • Kawasaki stratified scavenging system
  • Full cover design
  • KAR starter
  • Polyurethane foam air filter
  • Diaphragm carburetor
Show more
Support
  • Overview
  • Options

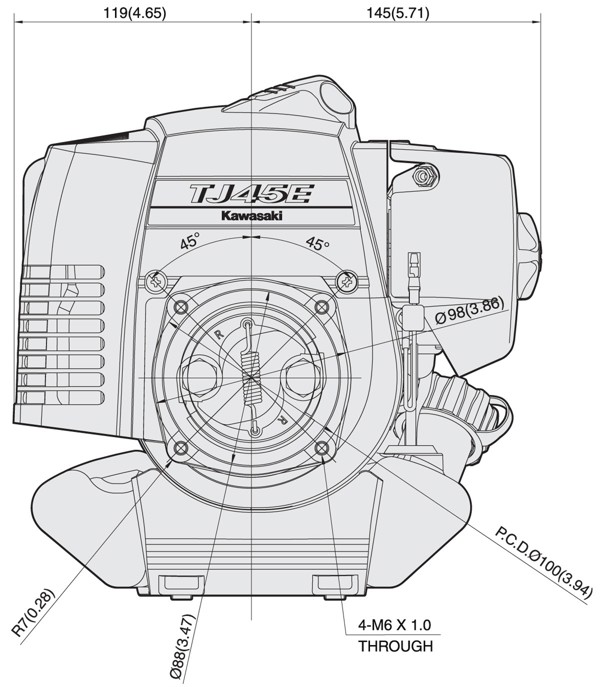

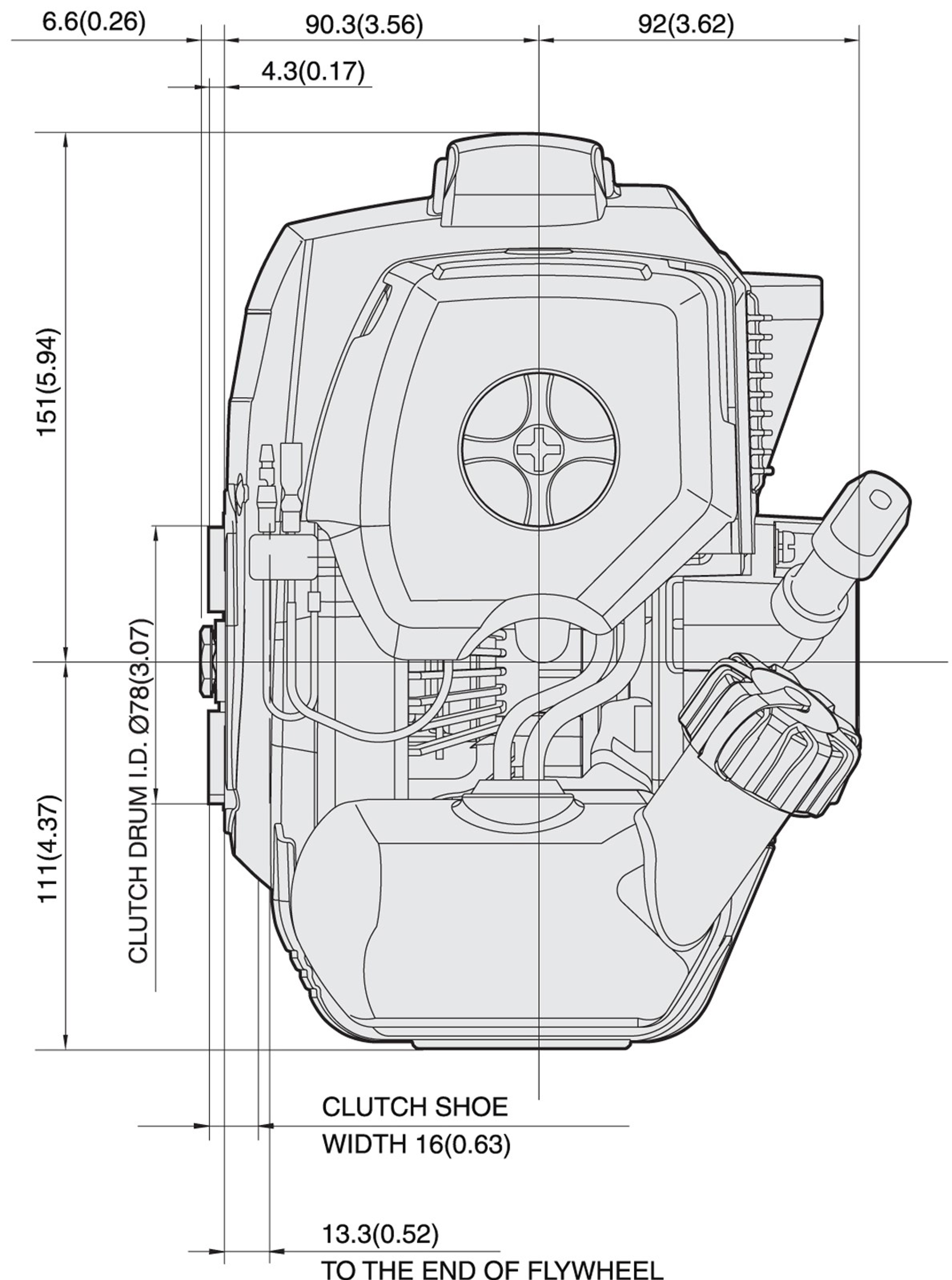

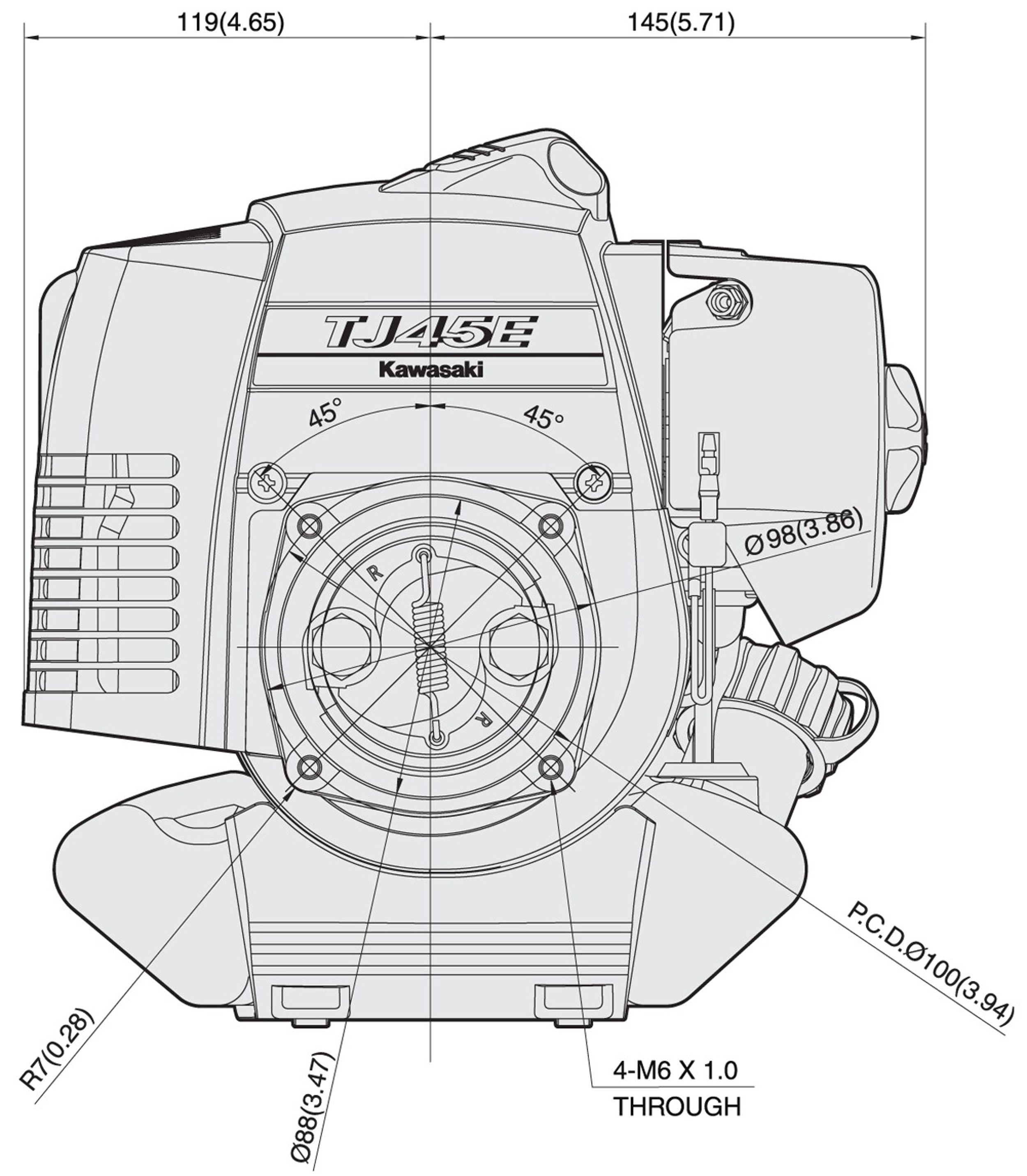

  • Dimensional Specifications
  • Related Models
  • Related Applications
Find A Dealer
Overview

Technical Specifications

Engine Type Air-cooled, 2-stroke, Single cylinder, Horizontal shaft
Number of cylinders 1
Bore x stroke 42.5 x 32 mm
Displacement 45.4 cm³
Max. power 1.42 kW (1.90 hp) / 7500 rpm
Max. torque 2.18 Nm (1.61 ft.lbs) / 5000 rpm
Fuel tank capacity (litres) 0.9 litres
Dry weight 3.9 kg
Dimensions (L x W x H) (mm) 189 x 264 x 262

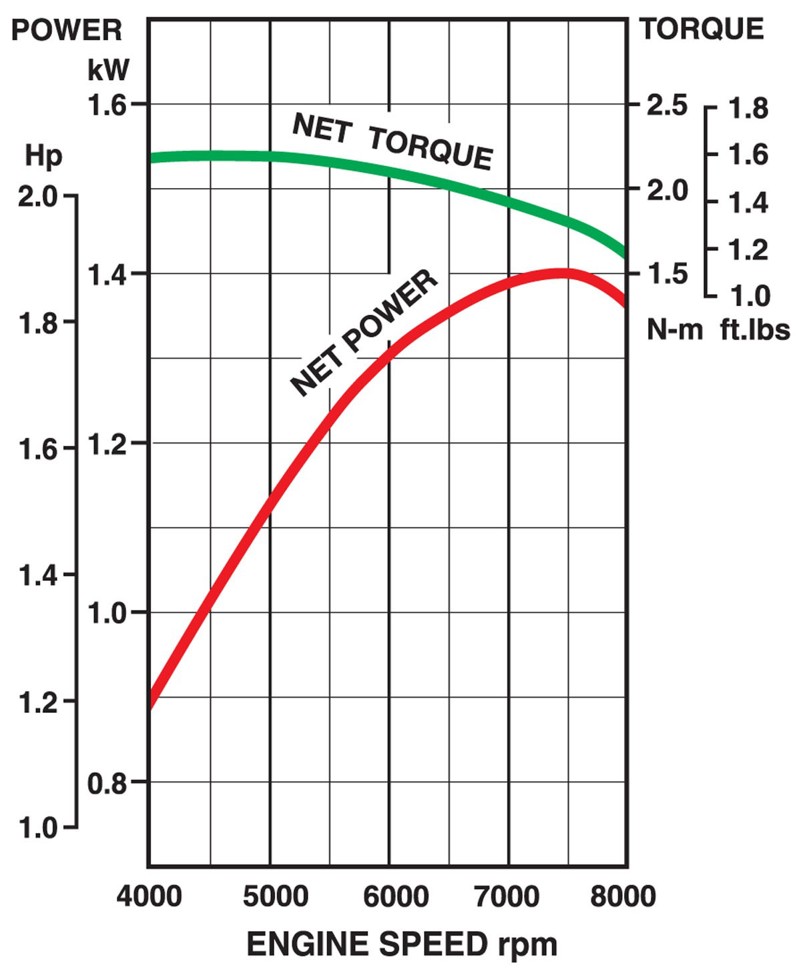

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves
Options
  • HD Clutch
  • Backpack spec
  • Shroud colour options
  • Engine kill switch
