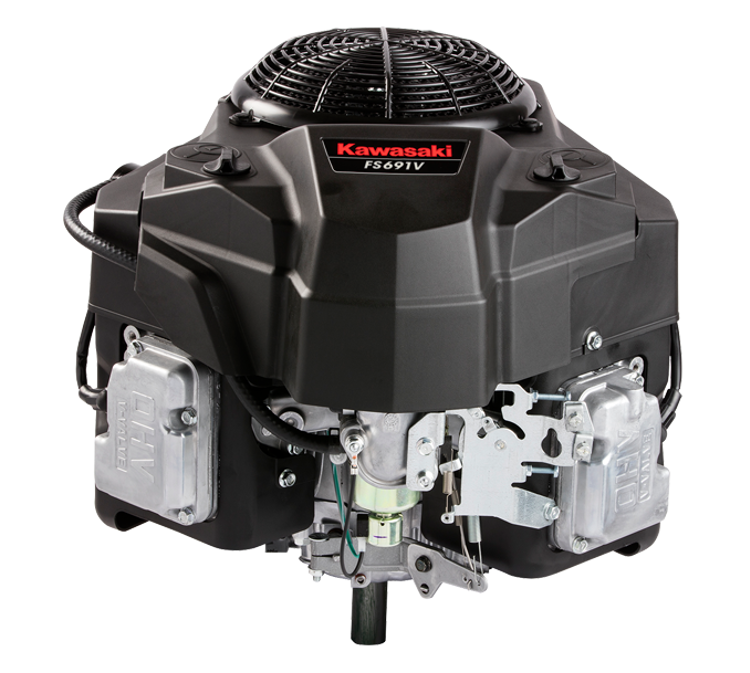

FS691V

For long-term performance and reliability, providing professionals with steadfast power they can trust.

Support

Benefits

Dual element air filter

Additional two stage filtration maintains optimum performance

Automatic compression release

Easy, reliable starting regardless of engine temperature

Integrated clean out ports (*subject to spec)

Allow tool-free inspection and cleaning to maintain peak operation

Spherical combustion chambers

Improve efficiency and maximise engine power

Specifications

Engine Type 4-Stroke, Vertical Shaft, V-Twin, OHV, Air-cooled
Number of cylinders 2
Bore x stroke 78 x 76 mm
Displacement 726cm³
Max. power 15.4 kW (20.6 hp) / 3600 rpm
Max. torque 53.3 Nm (39.3 ft.lbs) / 2000 rpm
Oil capacity 2.2 litres
Dry weight 41.0 Kg
Dimensions (L x W x H) (mm) 500 x 465 x 391

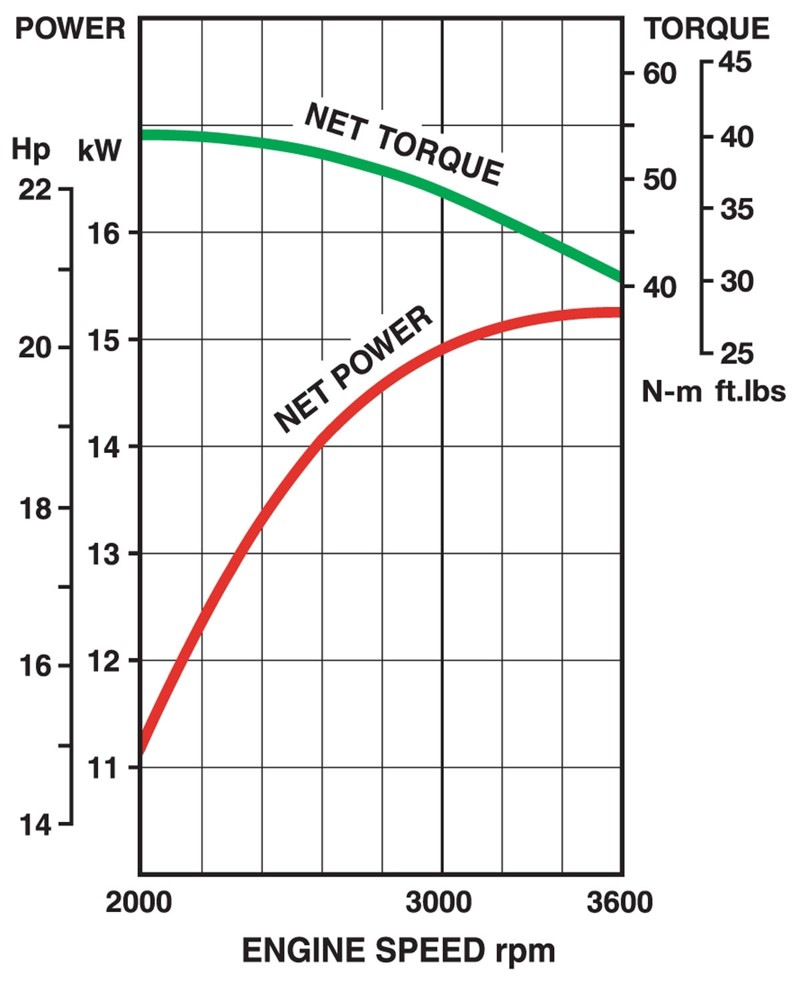

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves

Features

  • Bendix type starter
  • Dual element air filter
  • High performance lubrication system
  • Cast iron cylinder liners
  • Internally vented carburetor with fuel shut-off solenoid
  • Automatic compression release
  • Clean out ports*
  • 90 degree V-twin
  • Electronic spark ignition
  • Spherical combustion chambers
  • Overhead V-valves
  • Rotating grass screen

Options

  • Shaft variations
  • Various speed control system
  • 20 Amp charge coil
  • Various oil drains
  • Oil pressure switches
  • Muffler

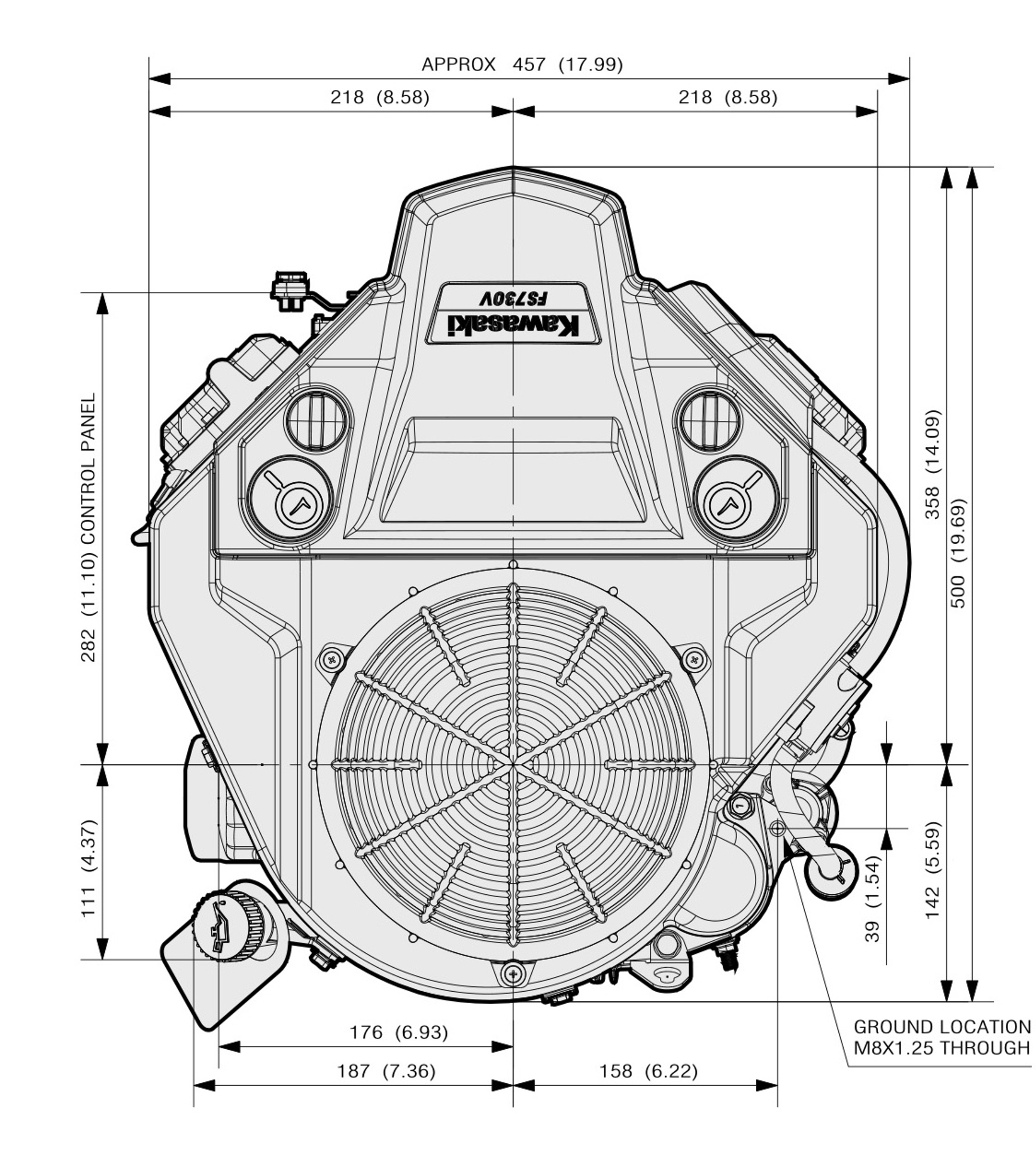

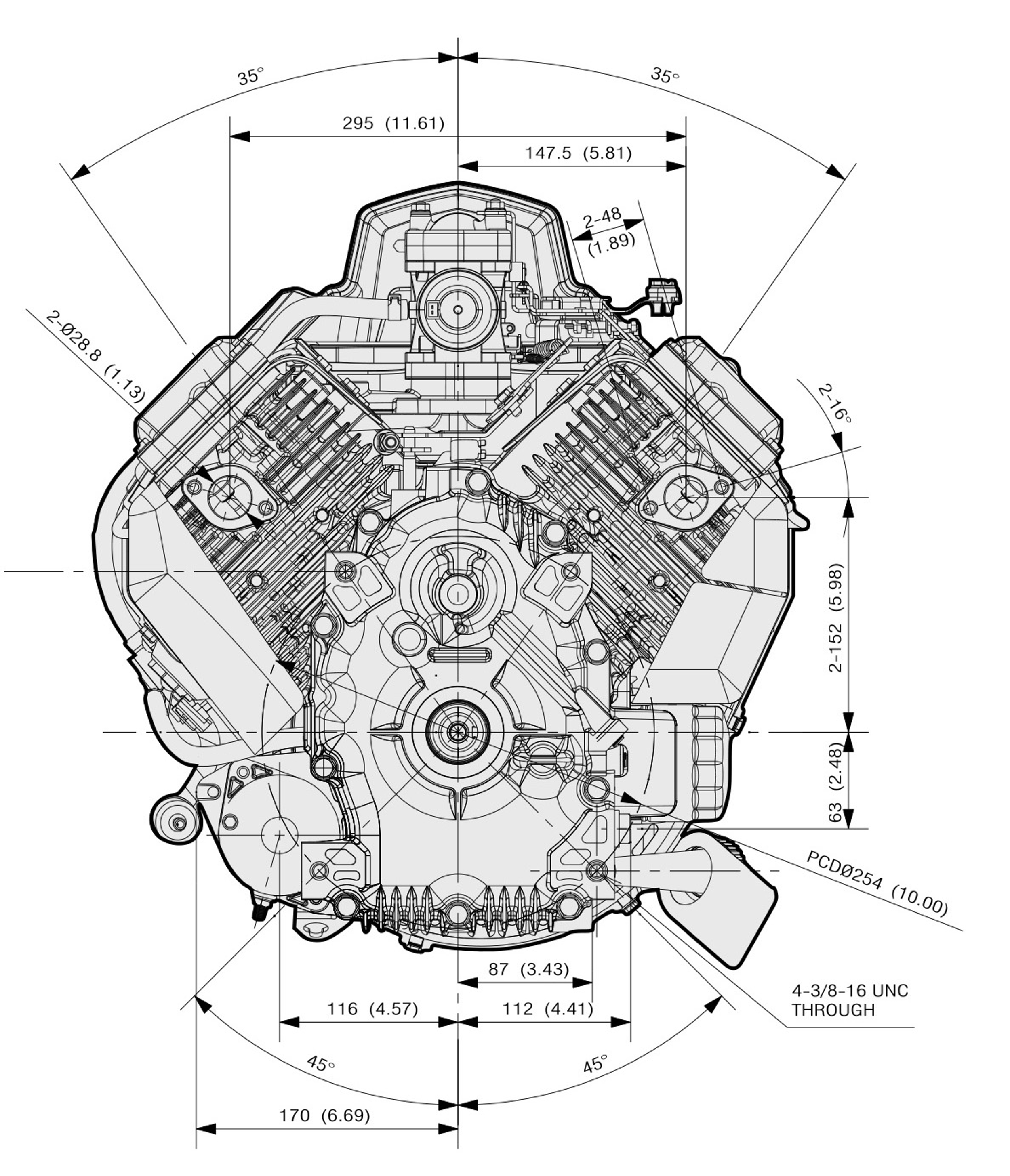

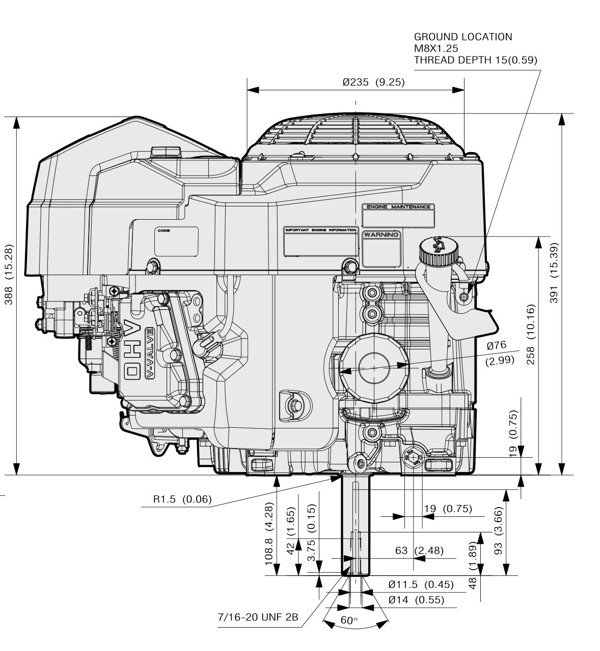

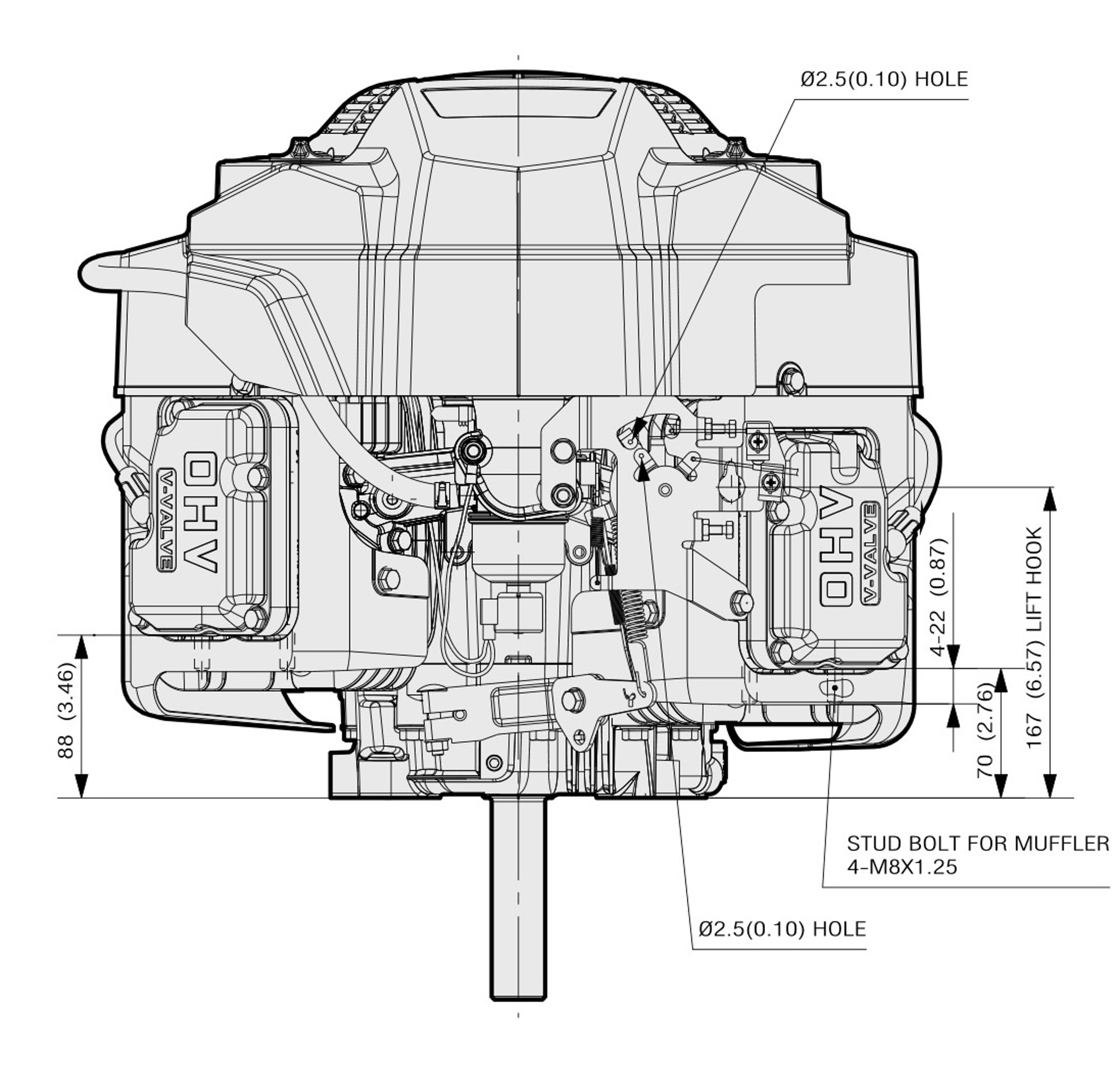

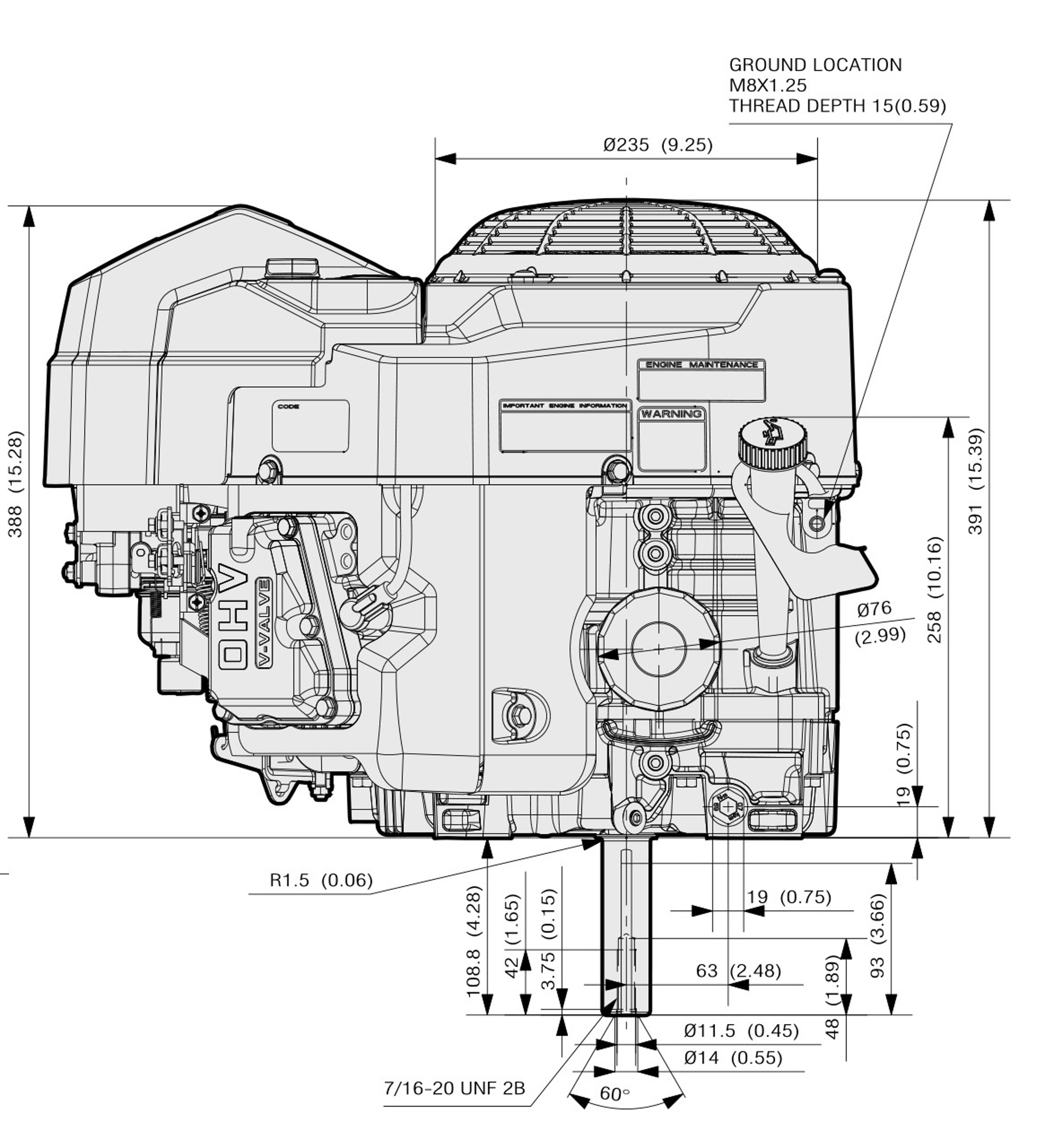

Dimensional Specifications
