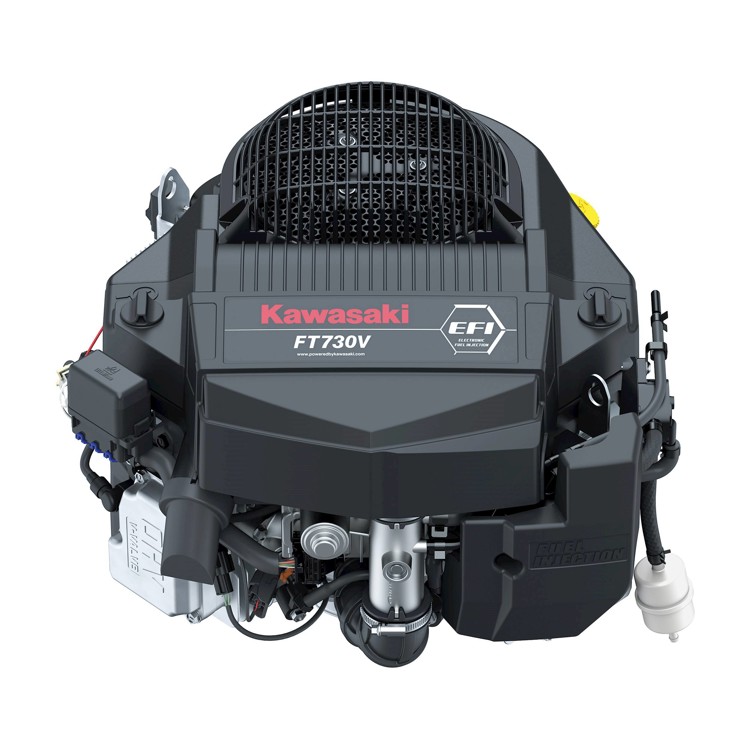

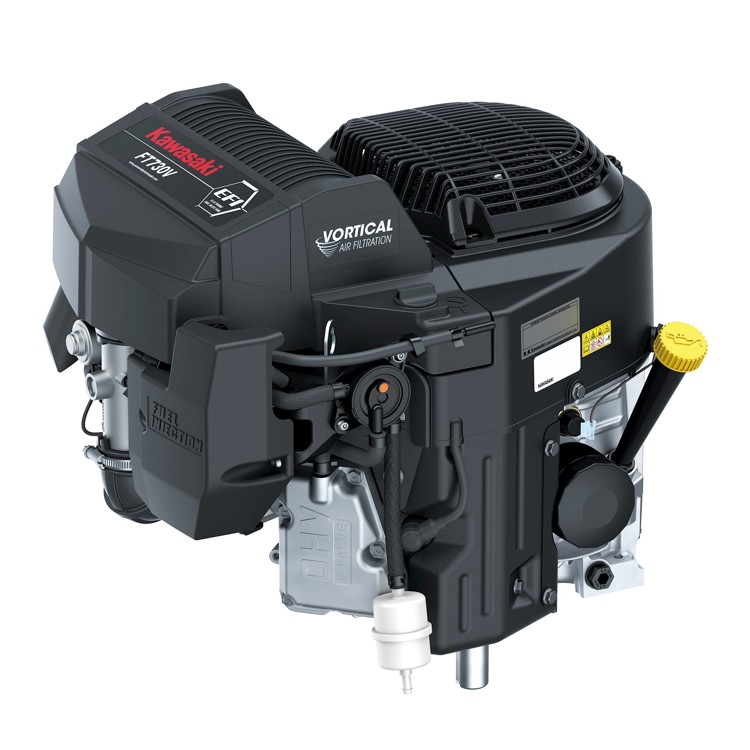

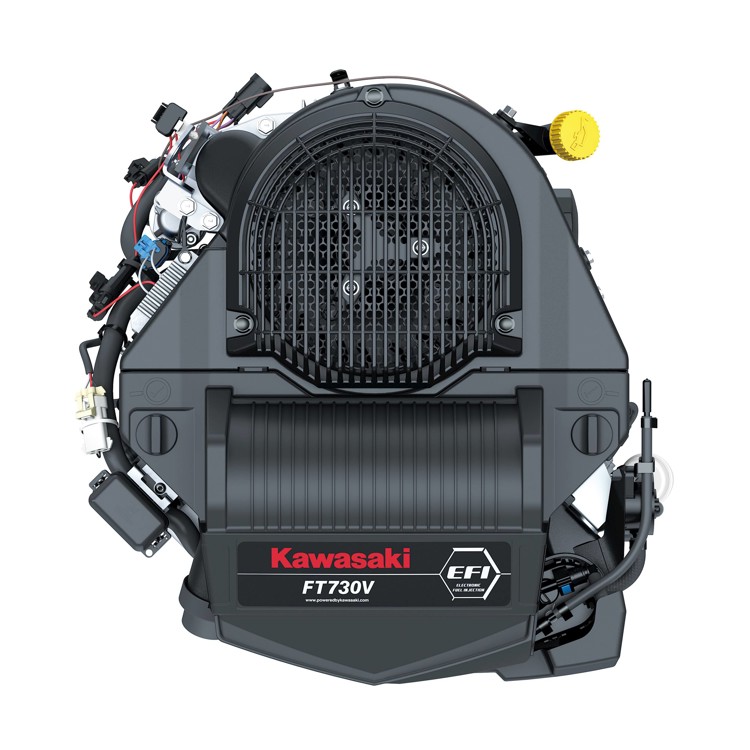

FT730V Electronic Fuel Injection (EFI)

(Currently only available for US OEMs)

The ultimate in debris management for professional turfcare, reducing maintenance downtime, improving performance and maximising engine life.



Support

Benefits

Integrated electronic throttle control

Instant throttle response gives turf professionals full available power, the second it’s needed. Speed is maintained over heavy turf, tall grass and up steep hills. Blade speed holds steady giving a cleaner cut on the first pass. Get more work done – in less time – with better results.

Open loop design

Our EFIs operate at strict, pre-determined standards for optimum commercial use performance. This design requires fewer sensors and parts, meaning simpler maintenance and easier upgrades.

Advanced electronic control unit (ECU)

Continuously monitors ambient conditions and engine performance to deliver optimum power and efficiency at all times. Be confident of effective engine operation no matter how tough the conditions.

Multiport sequential fuel injection

High-precision fuel delivery is managed according to engine conditions and ECU feedback. Power per stroke and fuel economy is maximised, delivering optimum power and fuel efficiency.

SAE-J1939 CAN communication protocol

Seamlessly and efficiently integrates real-time engine performance with the mower’s controls, sensors and displays, allowing advanced operating features for the end user.

Simple, intuitive dealer diagnostics

Downtime is minimised thanks to a PC or tablet plug-in diagnostic system. Delivers fast, easy troubleshooting and precise servicing, getting operators back to work quicker.

Specifications

Engine Type 4-Stroke, Vertical Shaft, V-Twin, OHV, Air-cooled
Number of cylinders 2
Bore x stroke 78 x 76 mm
Displacement 726 cm³
Max. power 16.9 kW (22.6 hp) 3600 rpm
Max. torque 51.8 Nm (38.2 ft. lbs) 2600 rpm
Oil capacity 2.2
Dry weight 48.5 kg
Dimensions (L x W x H) (mm) 517 x 497 x 418

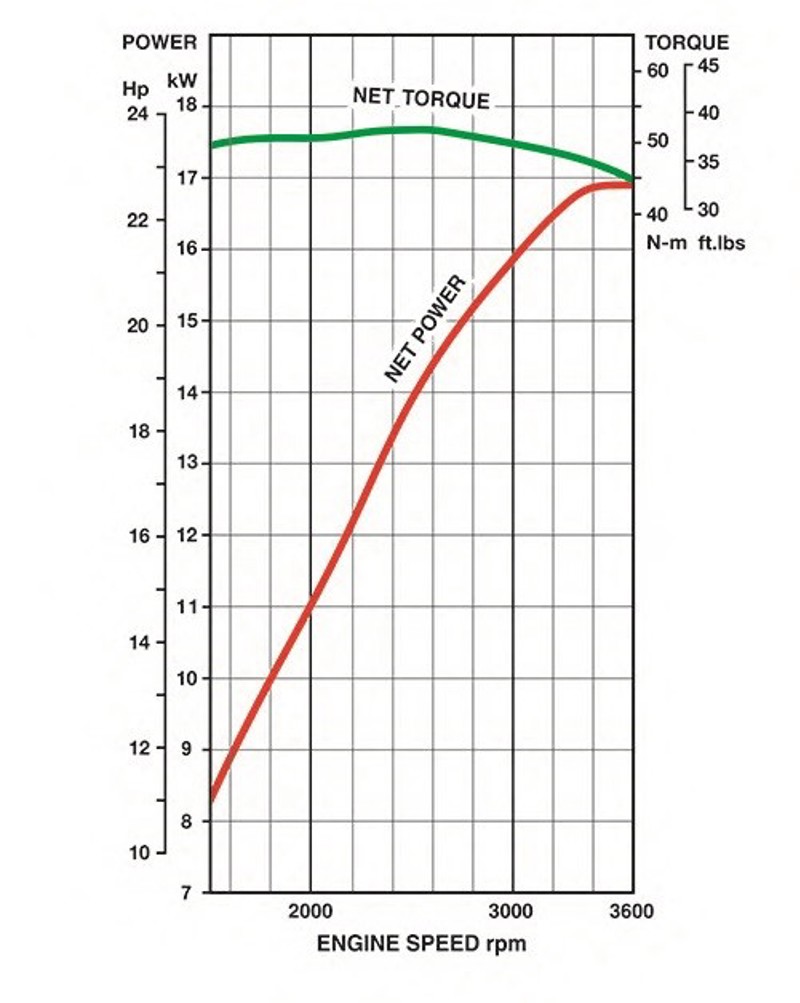

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves

Features

  • Sequential multiport fuel injection
  • High pressure fuel injection technology with electronic fuel pump
  • Large, easy access ports
  • 30 Amp charge coil
  • Electronic altitude compensation
  • Cast iron cylinder liners
  • Proven open loop design
  • Compact electronic control unit
  • Integrated electronic throttle control unit
  • Electronic ignition with variable spark timing
  • 90 degree V-twin
  • Pressurised lubrication system
  • Heavy duty shift type starter
  • High-efficiency, centrifugal air intake system

Options

  • Shaft variations
  • Various oil drains
  • Oil pressure switches
  • Muffler

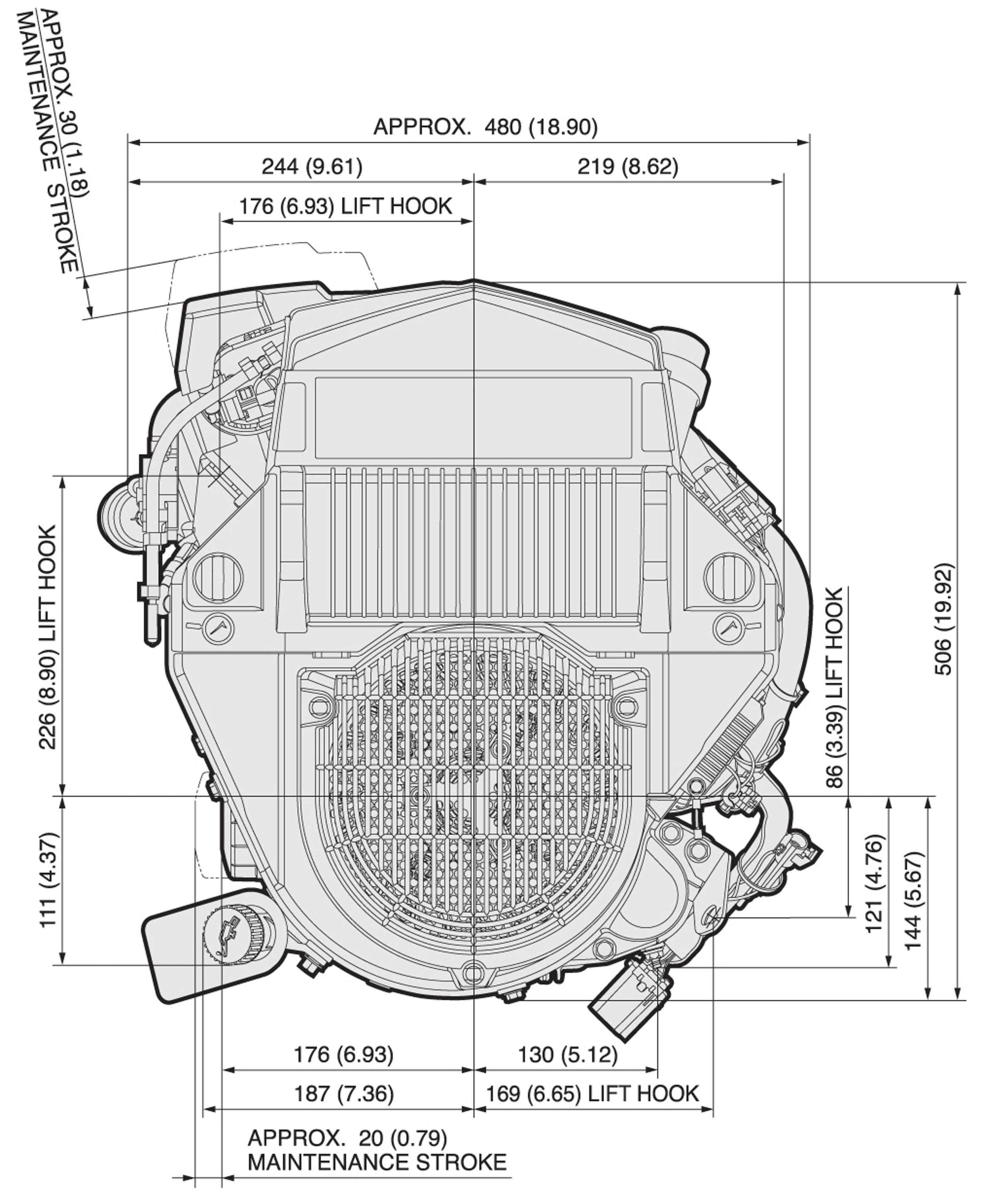

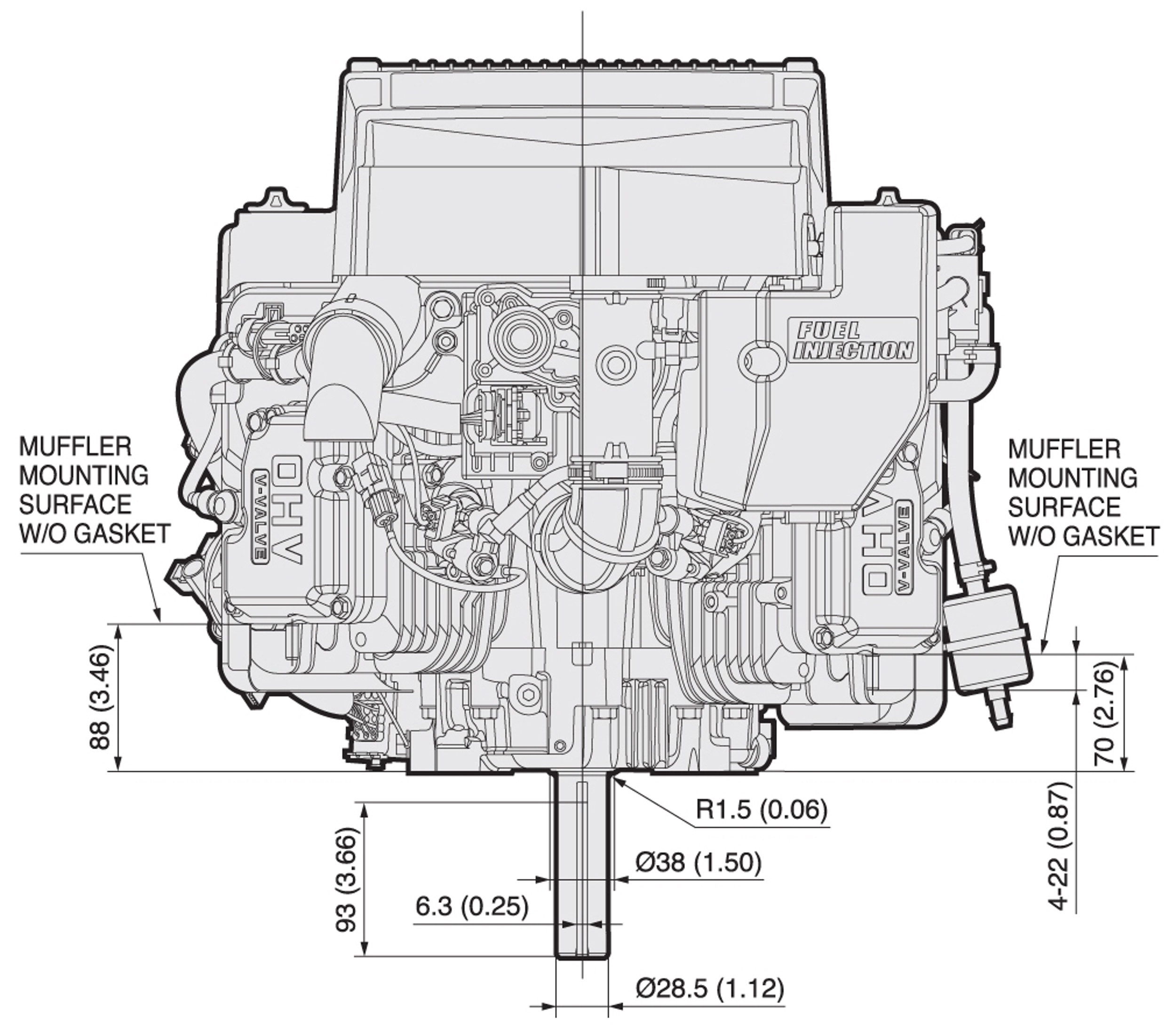

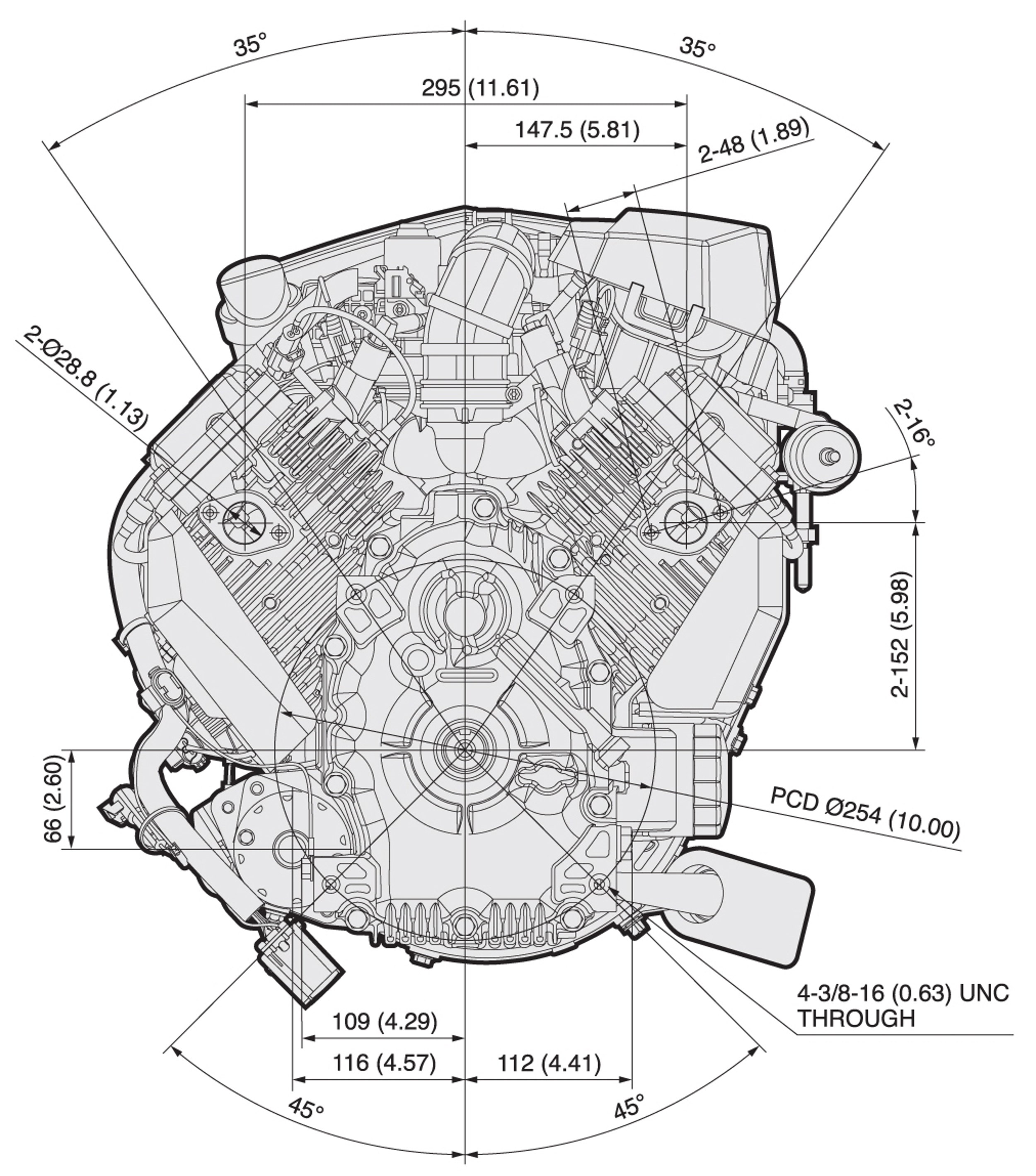

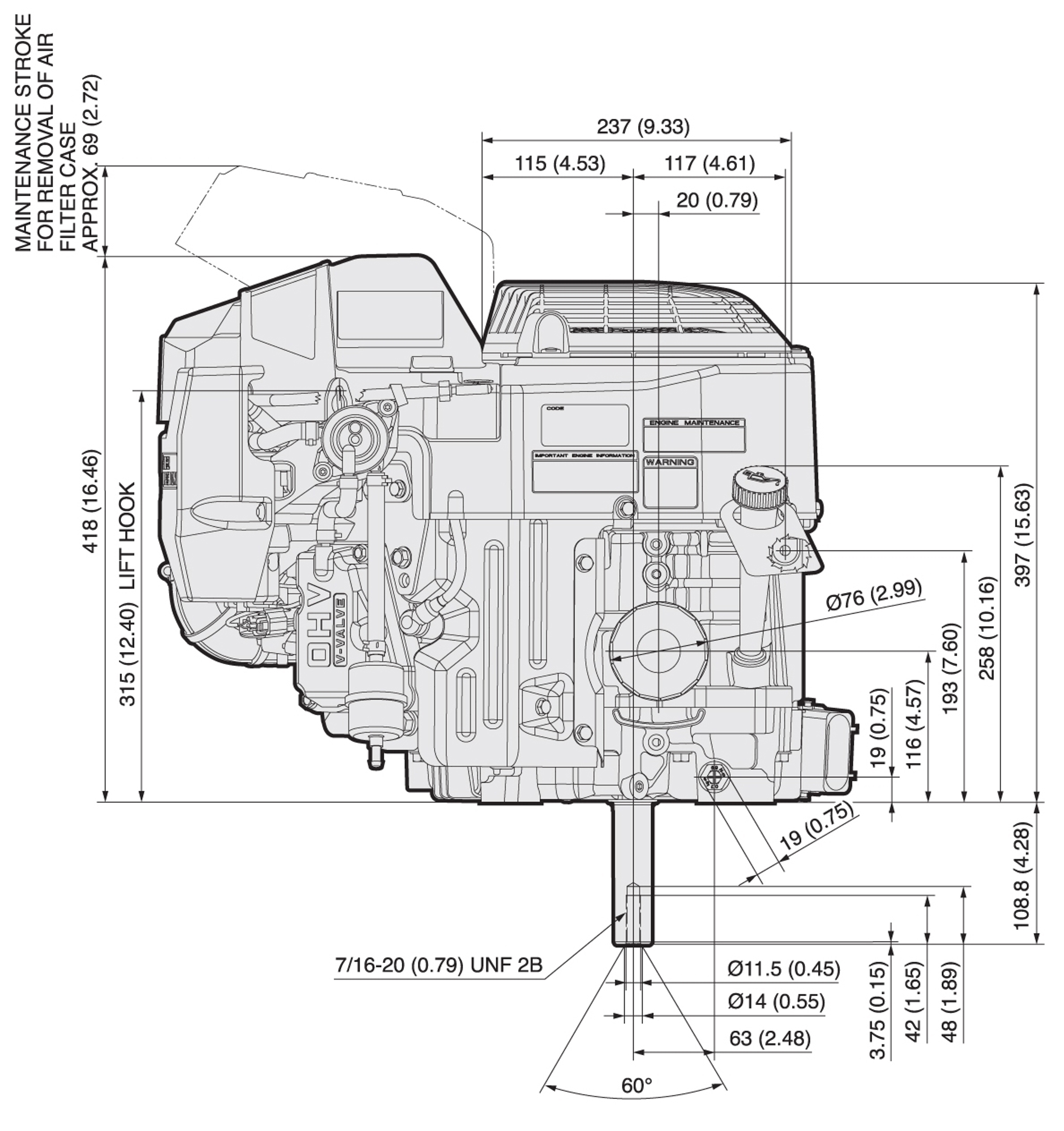

Dimensional Specifications
