High performance lubrication system
Maximises durability and performance
FR541V

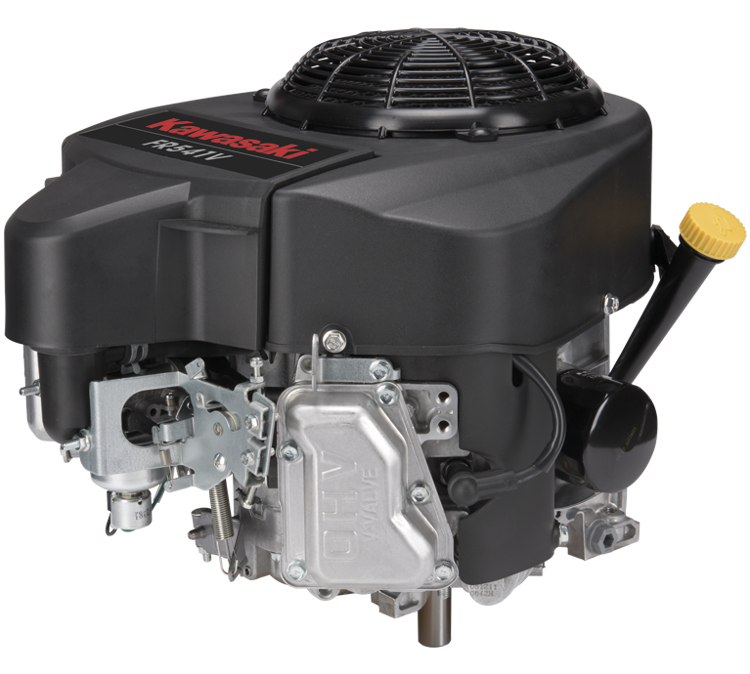

A high quality power solution for residential ride-on mowers, offering smooth, quiet, low-vibration running.
Benefits
Rotating grass screen
Prevents debris build-up for greater efficiency and reliability
Cast aluminium crankcase and cylinder heads
Strong yet lightweight design for agile mower operation
Specifications
| Engine Type | 4-Stroke, Vertical Shaft, V-Twin, OHV, Air-cooled |
| Number of cylinders | 2 |
| Bore x stroke | 73 x 72 mm |
| Displacement | 603 cm³ |
| Max. power | 11.3 kW (15.1 hp) / 3600 rpm |
| Max. torque | 39.1 Nm (28.8ft.lbs) / 2200 rpm |
| Oil capacity | 2.0 litres |
| Dry weight | 36.7 kg |

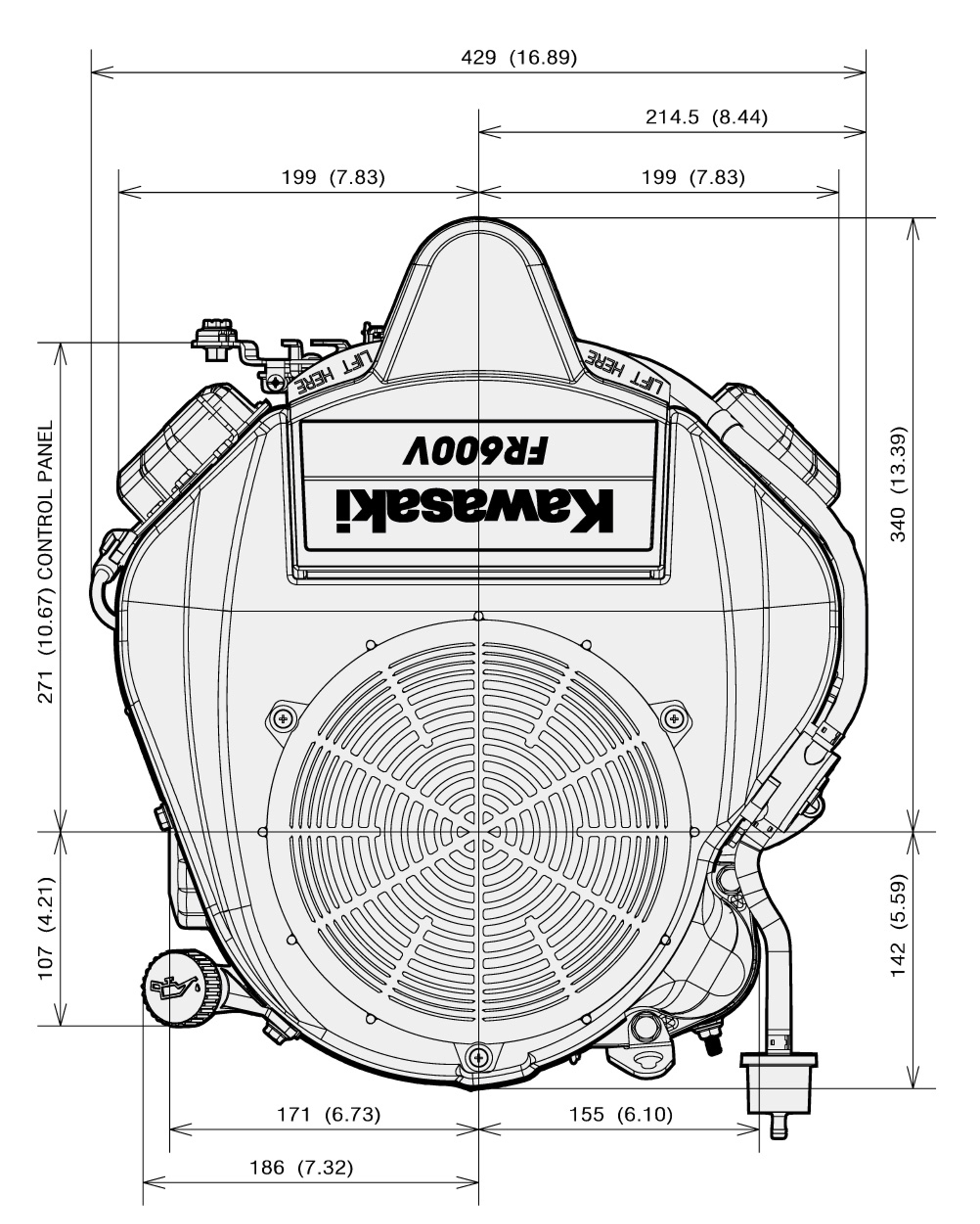

| Dimensions (L x W x H) (mm) | 482 x 429 x 370 |

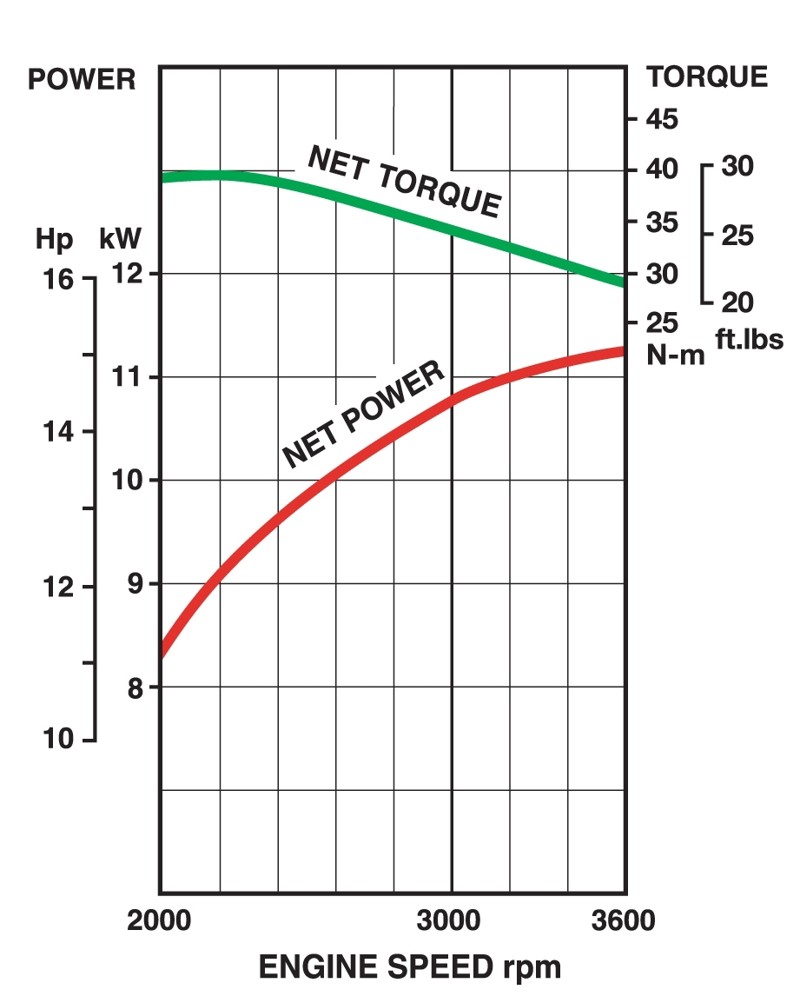

Performance curves
The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.
Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
Features
-
90 degree V-twin
-
Automatic compression release
-
Bendix type starter
-
Cast iron cylinder liners
-
Electronic spark ignition
-
High performance lubrication system
-
Internally vented carburetor with fuel shut-off solenoid
-
Overhead V-valves
-
Rotating grass screen
-
Spherical combustion chambers
Options
-
Muffler
-
Oil pressure switches
-
Shaft variations
-
20 Amp charge coil
-
Various oil drains
-
Various speed control system
