Rotating grass screen
Prevents debris build-up for greater efficiency and reliability

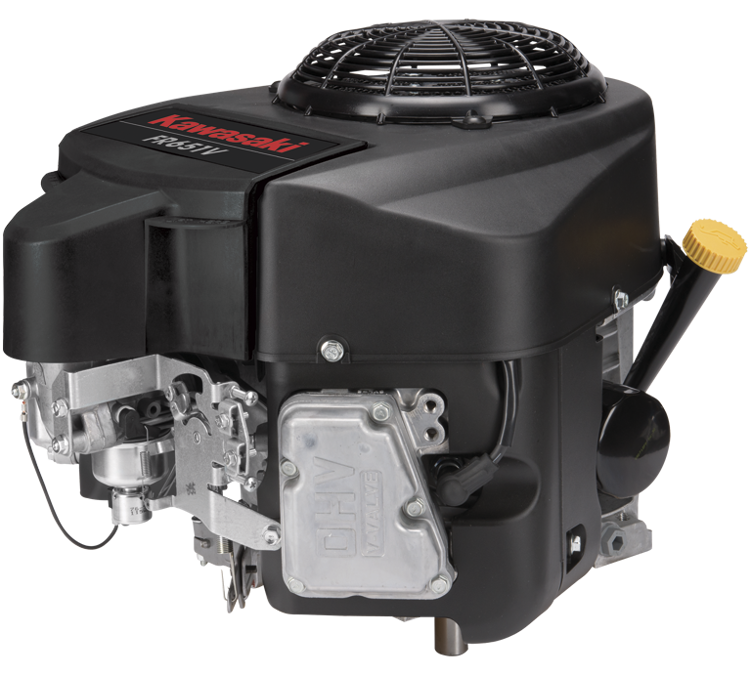

FR651V
A high quality power solution for residential ride-on mowers, offering smooth, quiet, low-vibration running.
Benefits
High performance lubrication system
Maximises durability and performance
Cast aluminium crankcase and cylinder heads
Strong yet lightweight design for agile mower operation
Specifications
| Engine Type | 4-Stroke, Vertical Shaft, V-Twin, OHV, Air-cooled |
| Number of cylinders | 2 |
| Bore x stroke | 78 x 76 mm |
| Displacement | 726 cm³ |
| Max. power | 14.5 kW (19.4 hp) / 3600 rpm |
| Max. torque | 52.7 Nm (38.9 ft.lbs) / 2000 rpm |
| Oil capacity (litres) | 2.2 litres |
| Dry weight | 40.0 kg |
| Dimensions (L x W x H) (mm) | 498 x 461 x 392 |

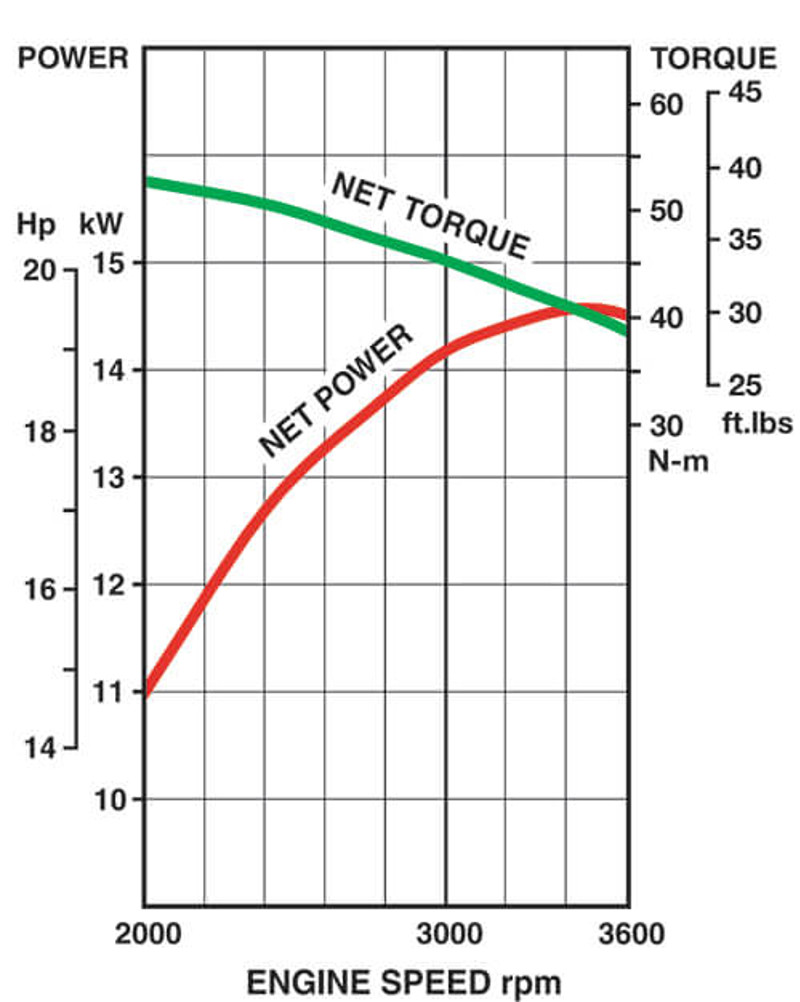

Performance curves
The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.
Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
Features
- Bendix type starter
- High performance lubrication system
- Cast iron cylinder liners
- Internally vented carburetor with fuel shut-off solenoid
- Automatic compression release
- 90 degree V-twin
- Electronic spark ignition
- Spherical combustion chambers
- Overhead V-valves
- Rotating grass screen
Options
- Shaft variations
- Various speed control system
- 20 Amp charge coil
- Various oil drains
- Oil pressure switches
- Muffler
