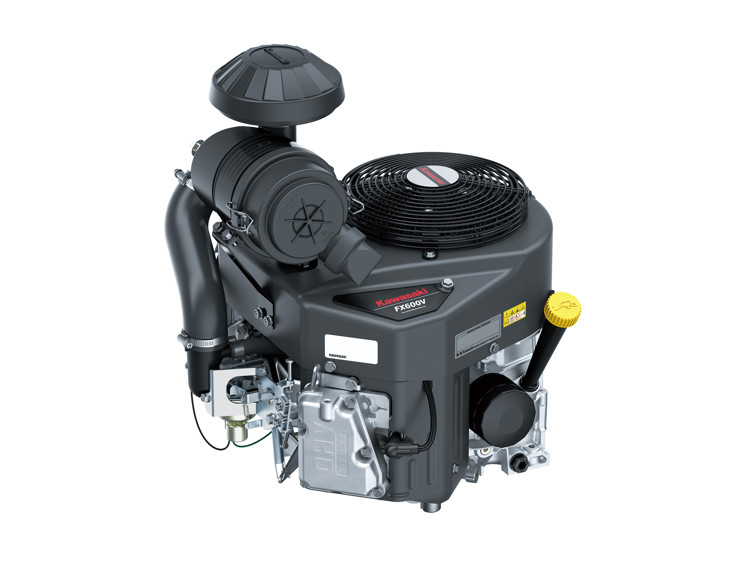

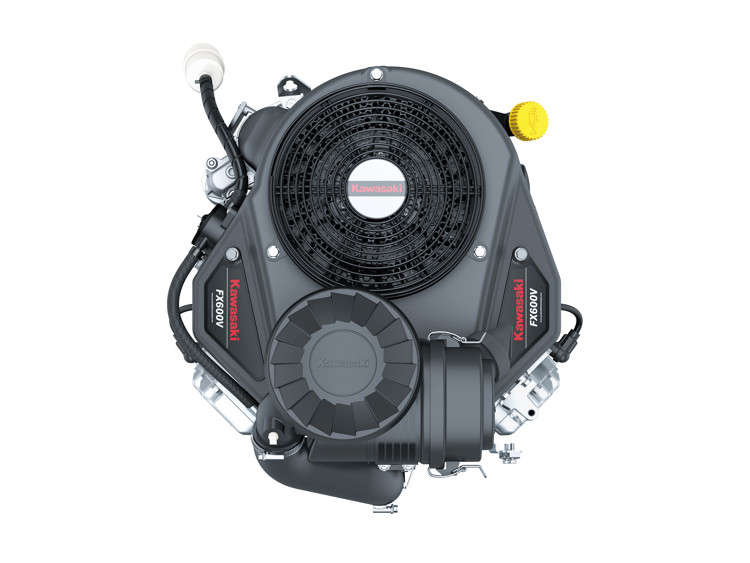

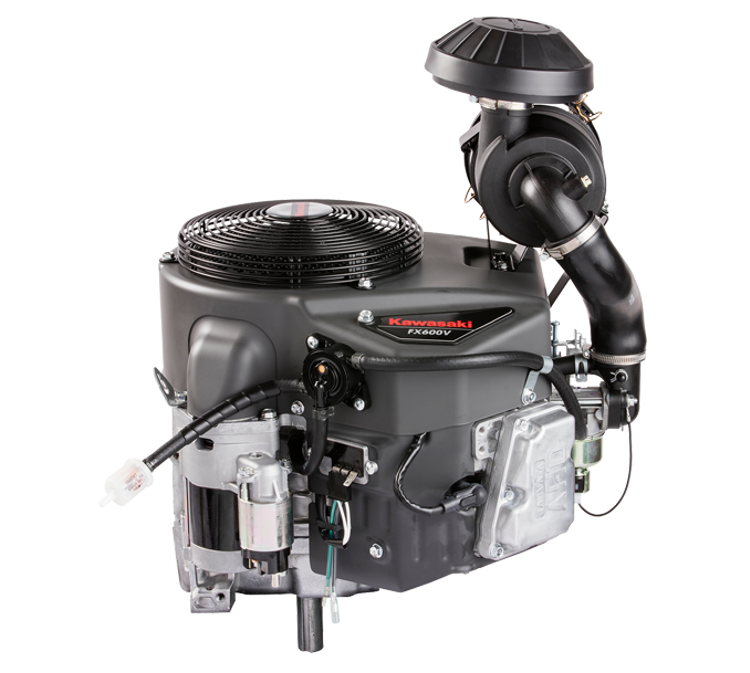

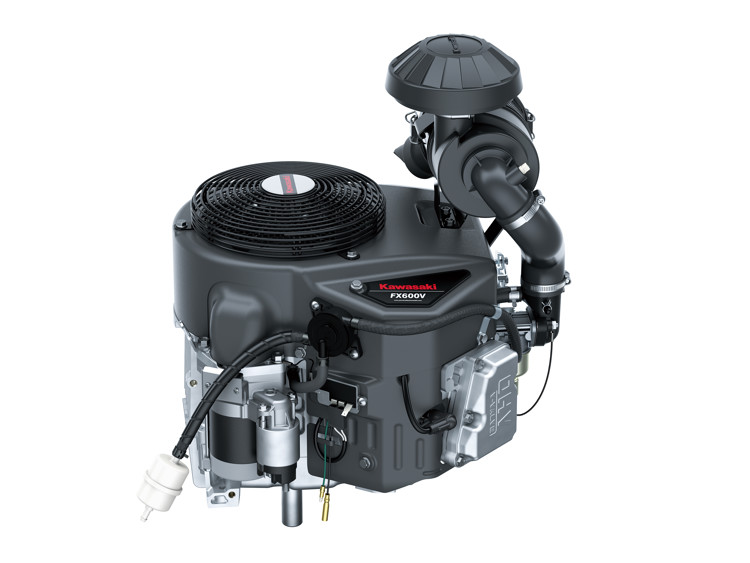

FX600V

For heavy-duty commercial turfcare, constructed using premium quality components and materials, offering the highest levels of performance and durability.



Benefits

Tough metal engine cover

Maximum durability for tough commercial work

Cast iron cylinder liners

Withstand the heat, pressure and loads of heavy extended use

Multi-stage canister air filter

Using cyclonic air flow for superior filtration and optimum engine performance

Heavy-duty starter

Reliable starting for demanding workloads

Specifications

Engine Type 4-Stroke, Vertical Shaft, V-Twin, OHV, Air-cooled,
Number of cylinders 2
Bore x stroke 73 x 72 mm
Displacement 603cm³
Max. power 12.7 kW (17.0 hp) / 3600 rpm
Max. torque 40.9 Nm (30.2 ft.lbs) / 2400 rpm
Oil capacity 2.0 litres
Dry weight 40.7 Kg
Dimensions (L x W x H) (mm) 468 x 429 x 544

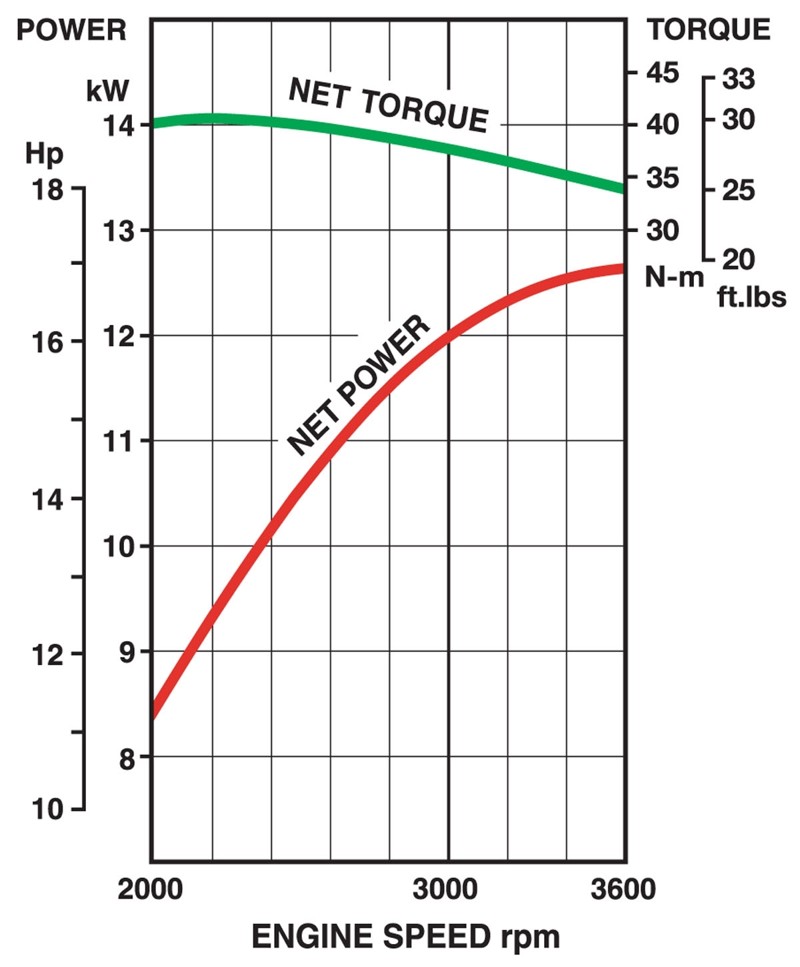

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves

Features

  • Single stage canister air filter
  • High performance lubrication system
  • Cast iron cylinder liners
  • Internally vented carburetor with fuel shut-off solenoid
  • Automatic compression release
  • Metal engine cover
  • 90 degree V-twin
  • Electronic spark ignition
  • Spherical combustion chambers
  • Clean out ports
  • Heavy duty shift type starter
  • Overhead V-valves
  • Rotating grass screen

Options

  • Shaft variations
  • Various speed control system
  • 20 Amp charge coil
  • Various oil drains
  • Oil pressure switches
  • Muffler

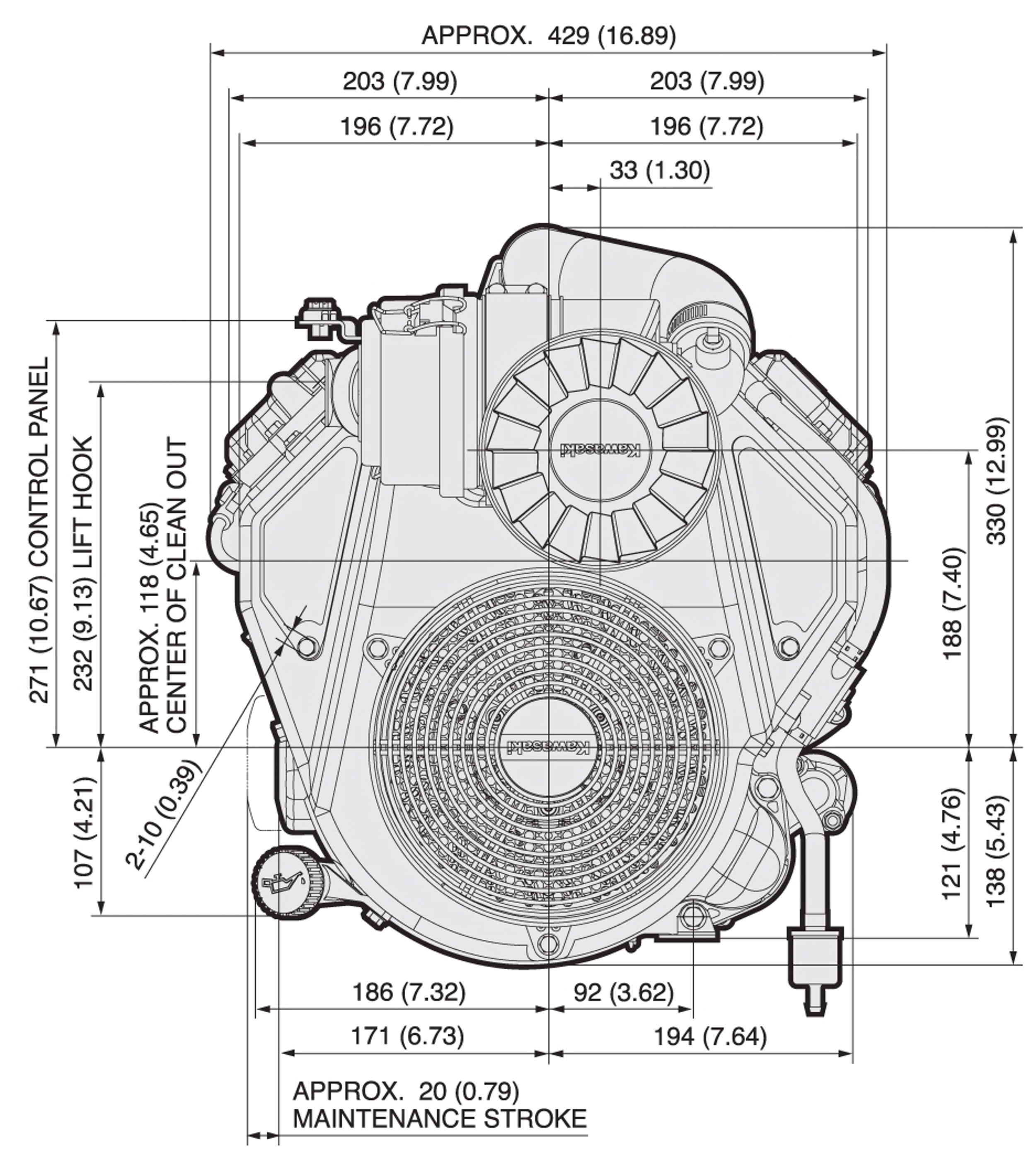

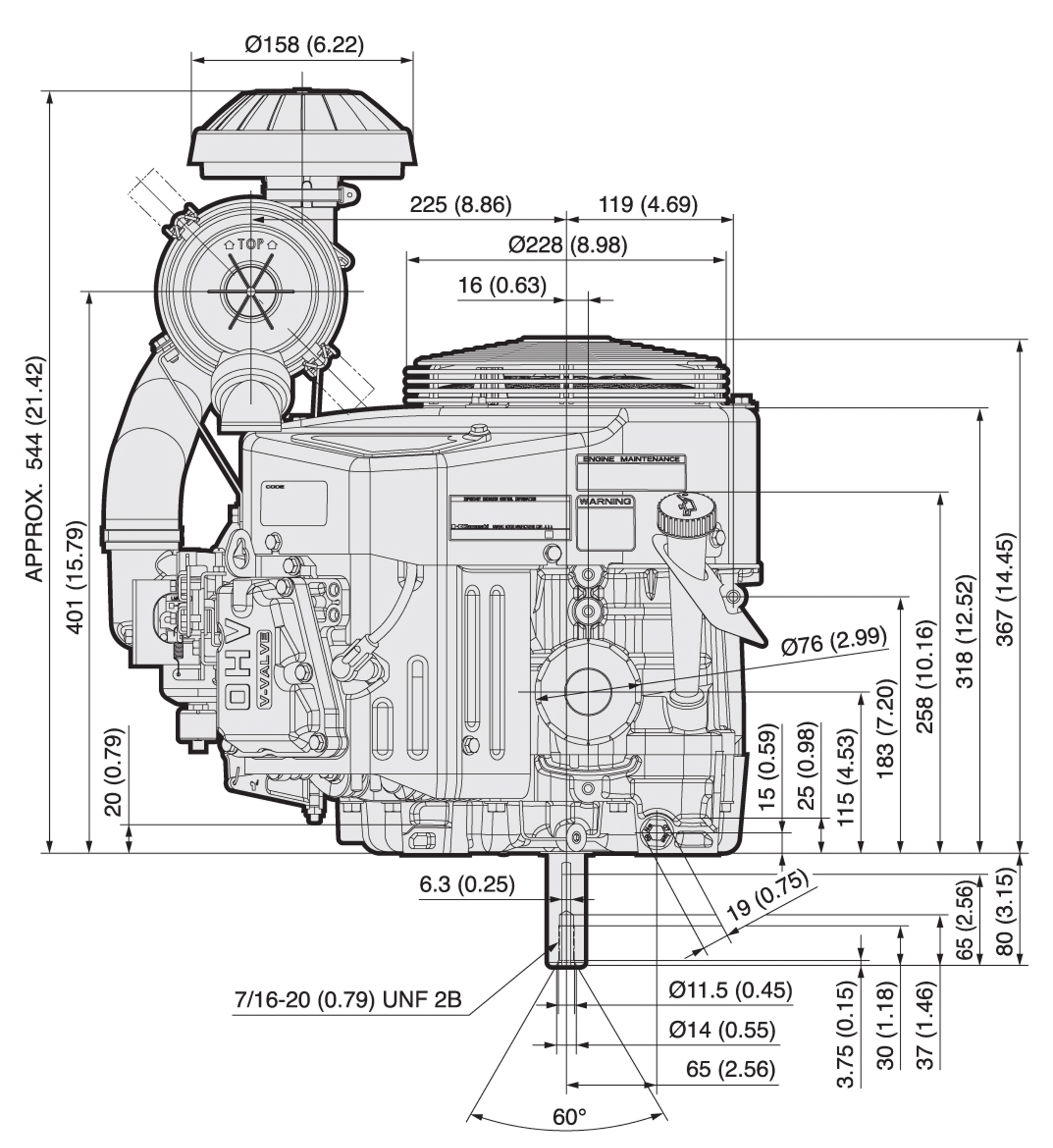

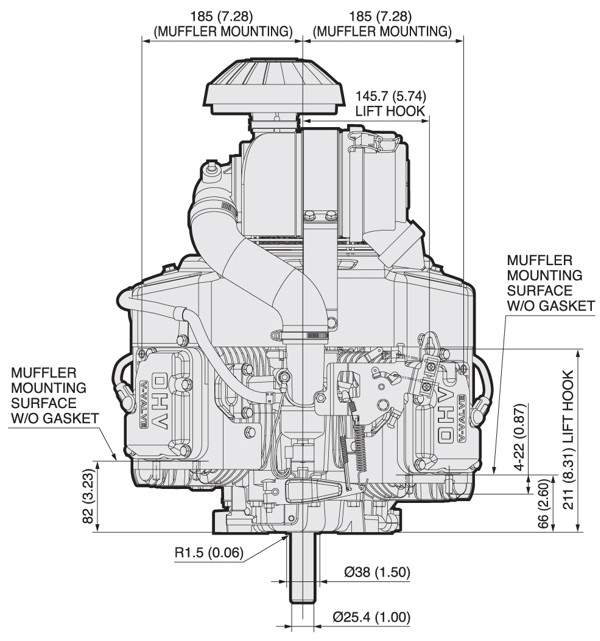

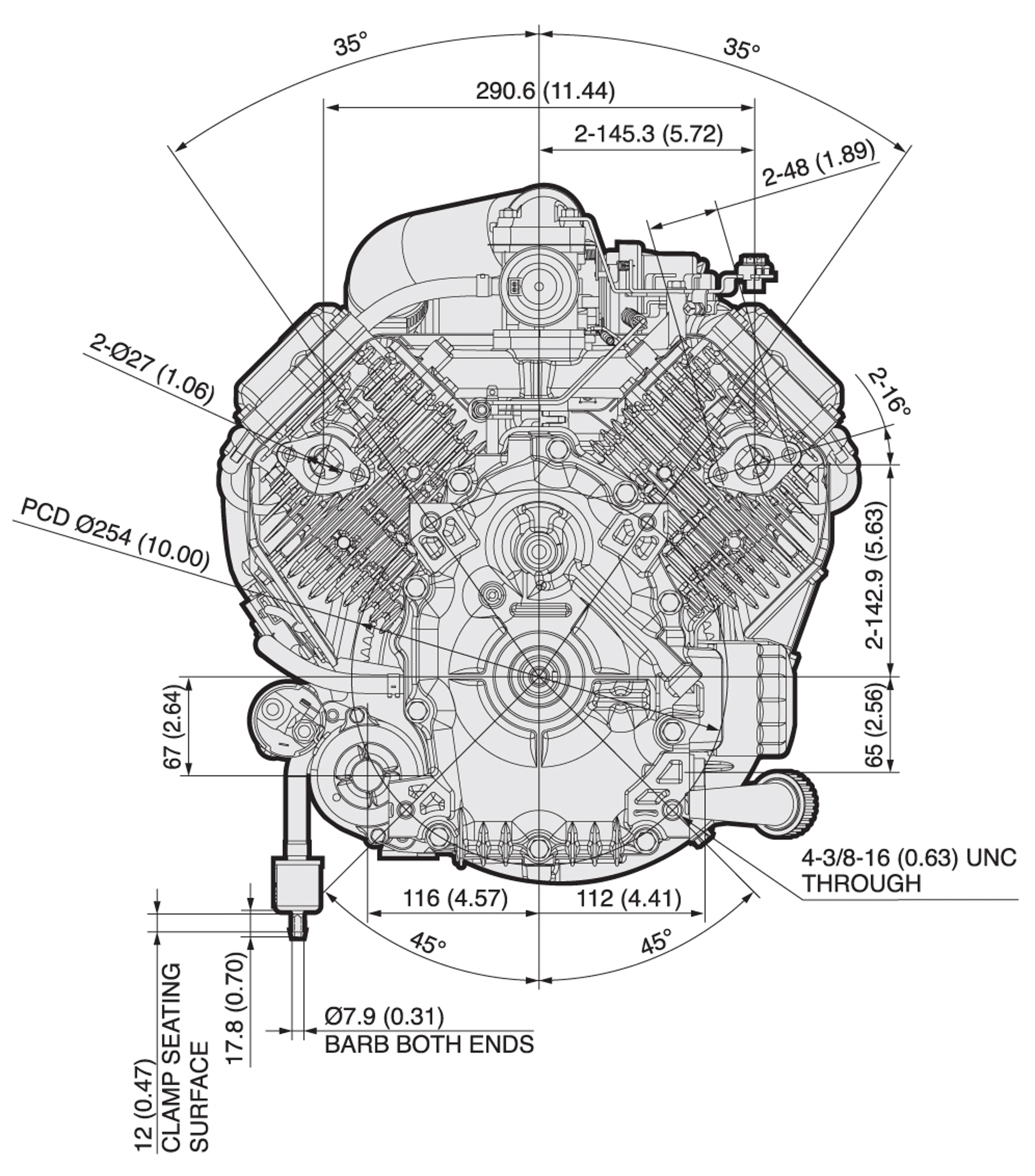

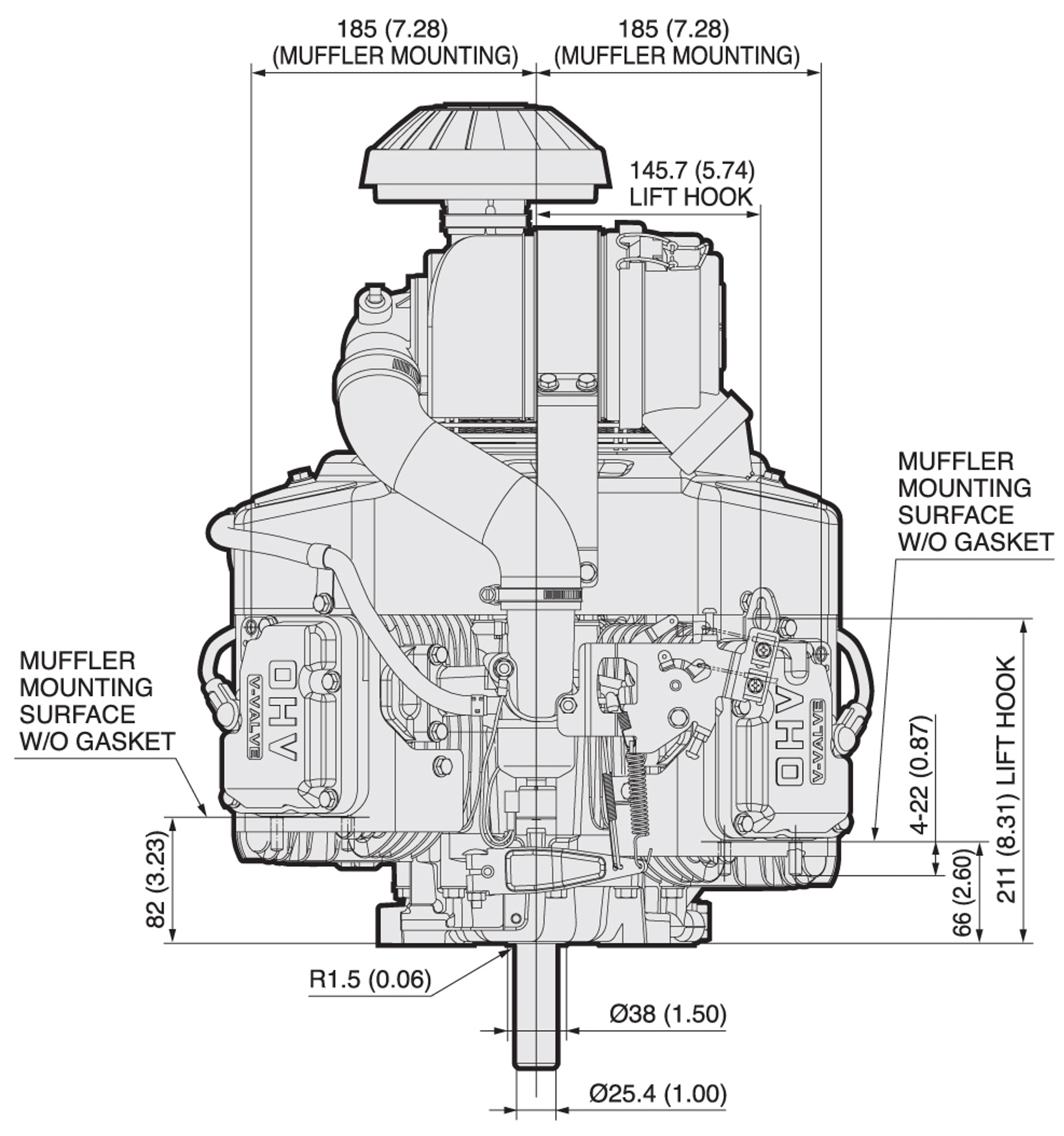

Dimensional Specifications
