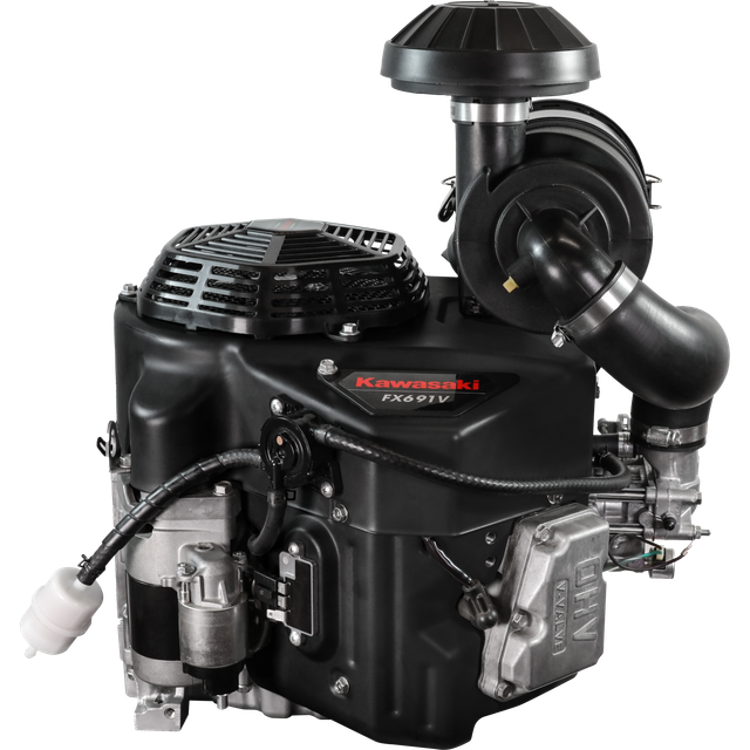

FX691V

4 Stroke
Vertical Shaft
V Twin
Overhead valve
Air Cooled

High performance lubrication system
Cast iron cylinder liners
Automatic compression release
Dual stage canister air filter
Metal engine cover
90 degree V-twin

Electronic spark ignition
Twin barrel, internally vented carburetor with fuel shut-off solenoid
Spherical combustion chamber
Clean out ports
Heavy duty shift type starter
Overhead V-valves
Rotating grass screen

Dual stage canister air filter for heavy duty use Rotating grass screen prevents debris build-up in cooling system Twin barrel internally vented carburetor with fuel shut off solenoid provides optimum cylinder fuelling

Overview
Options

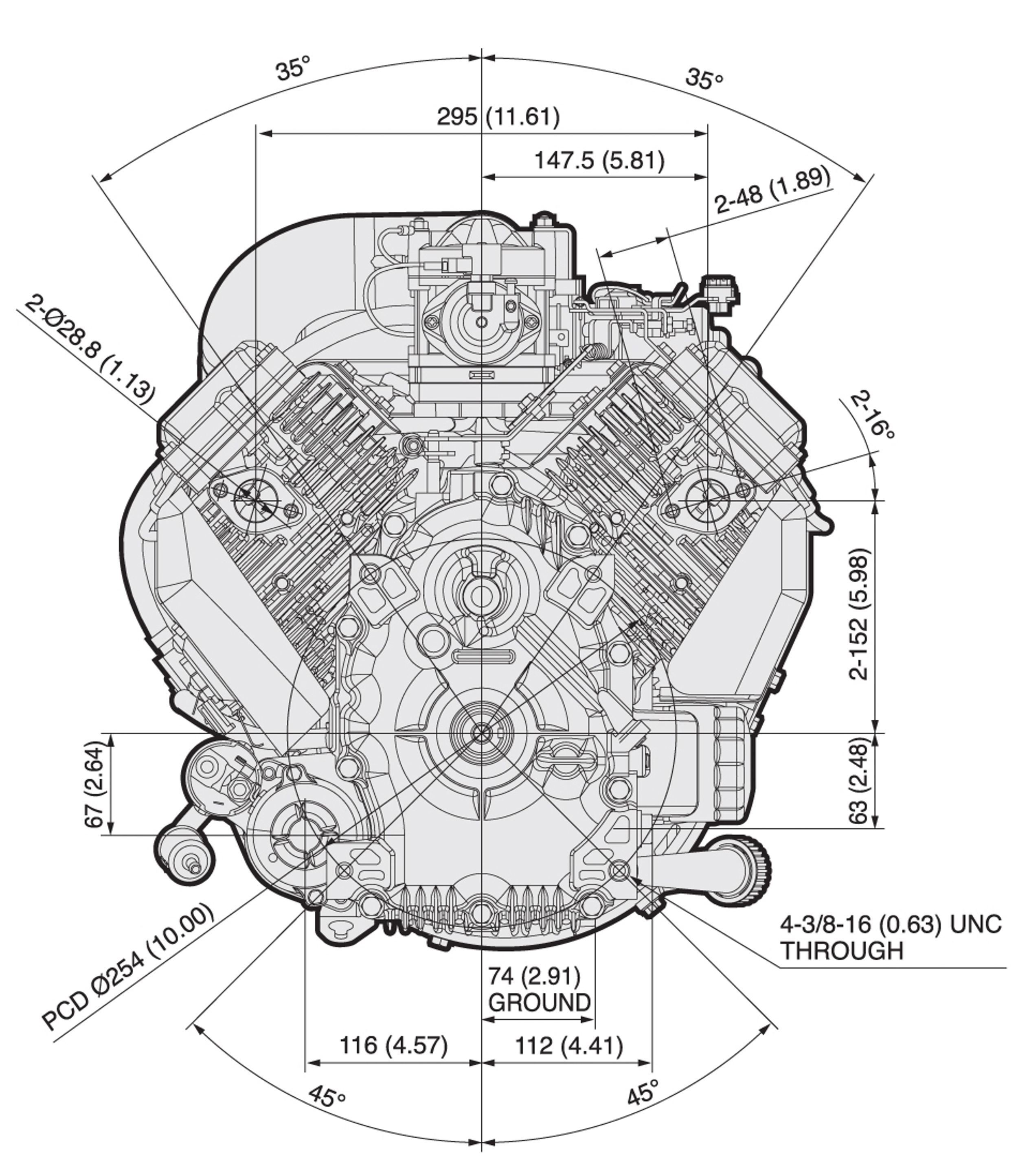

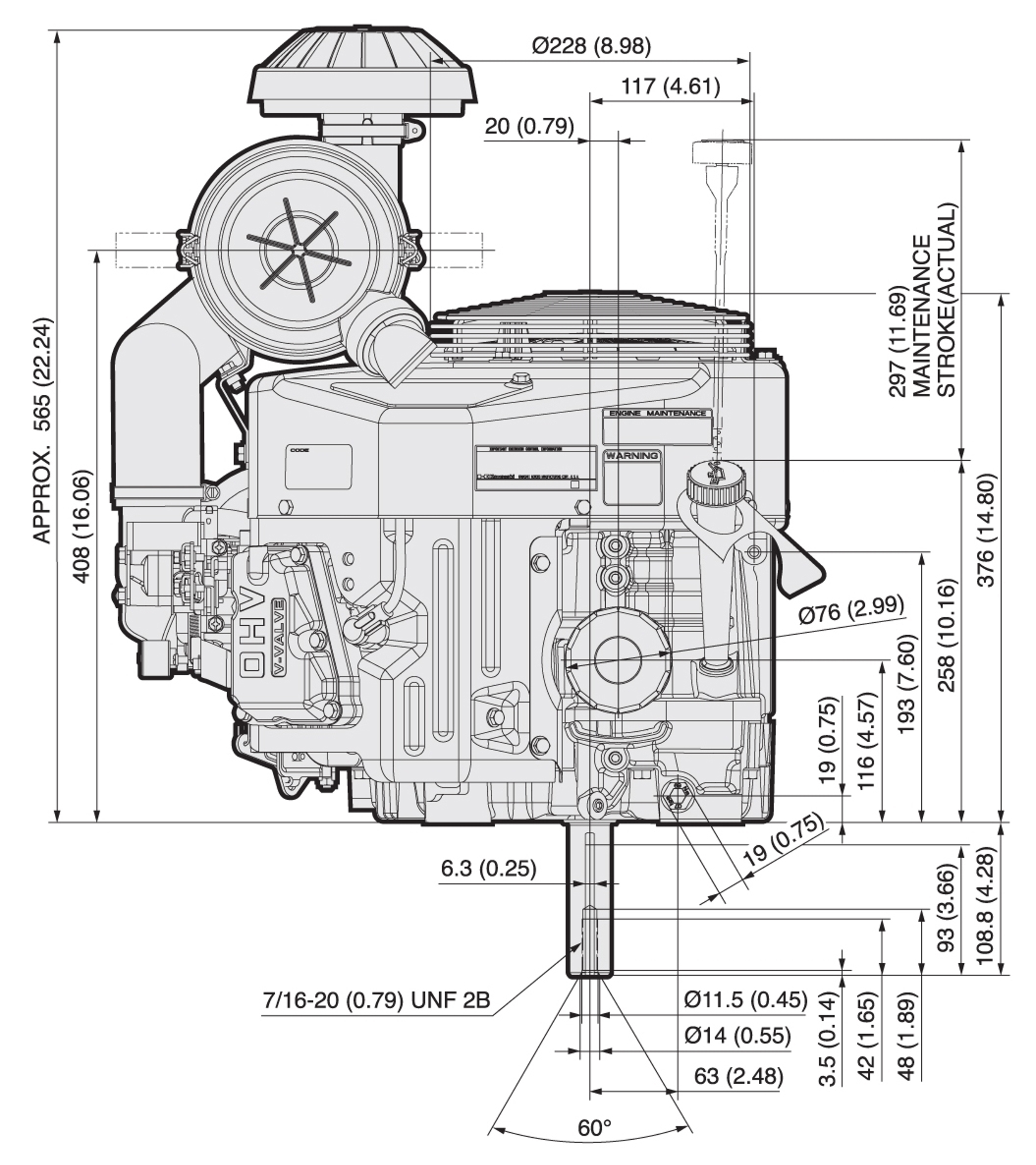

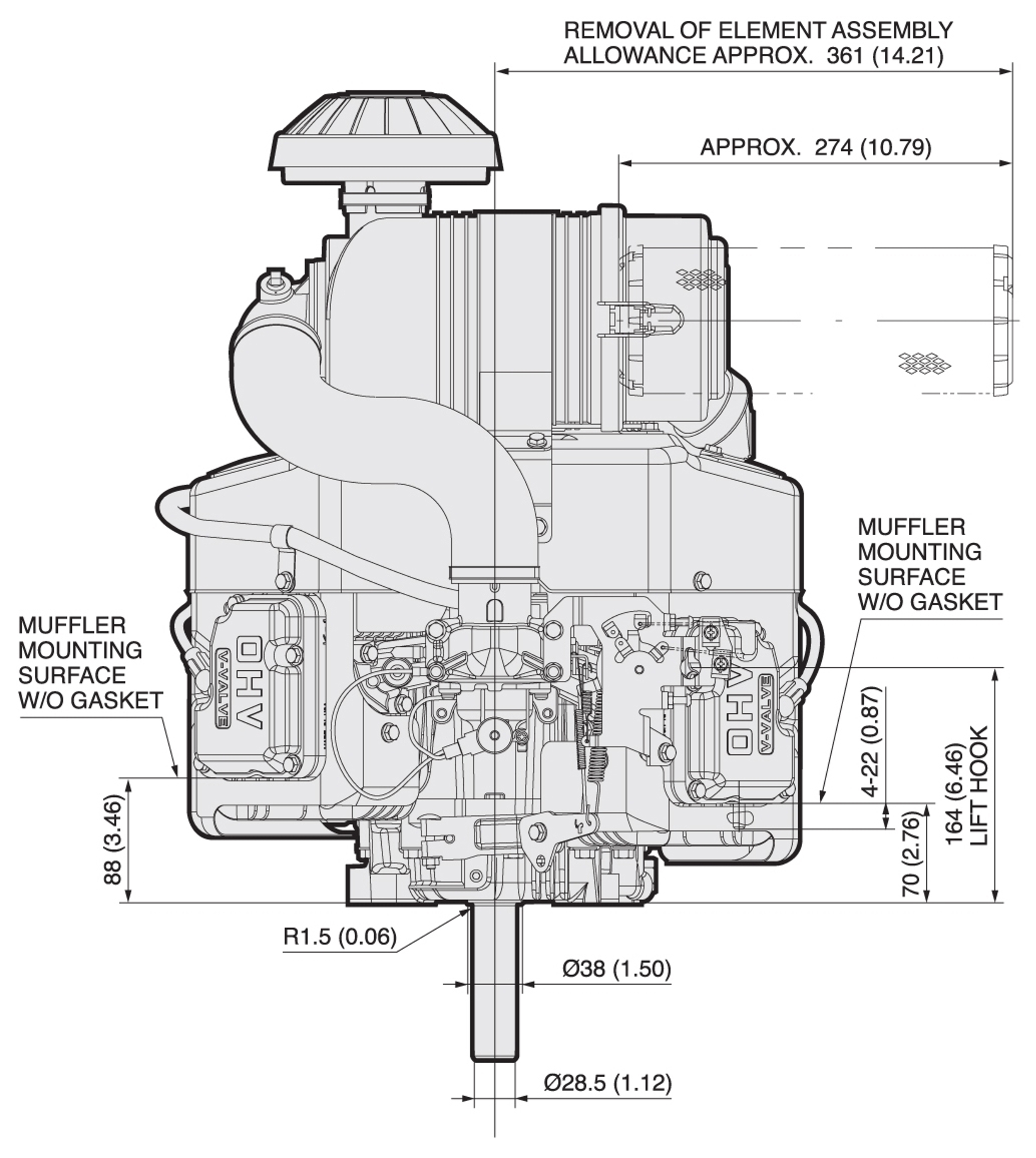

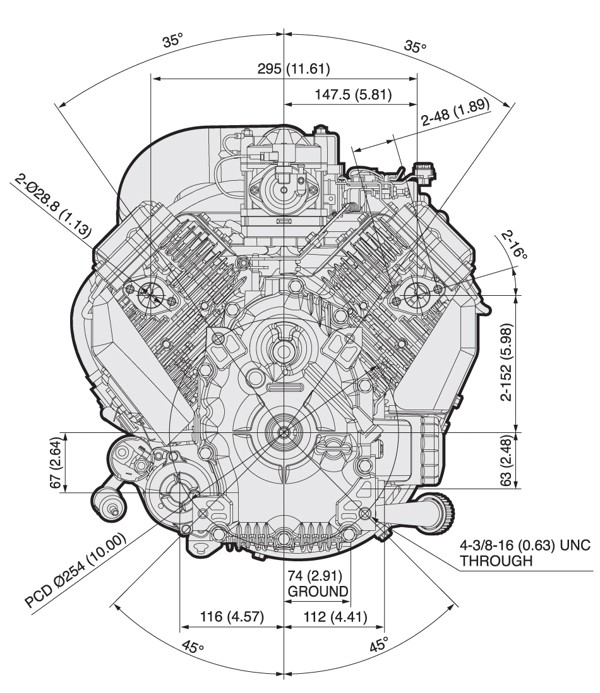

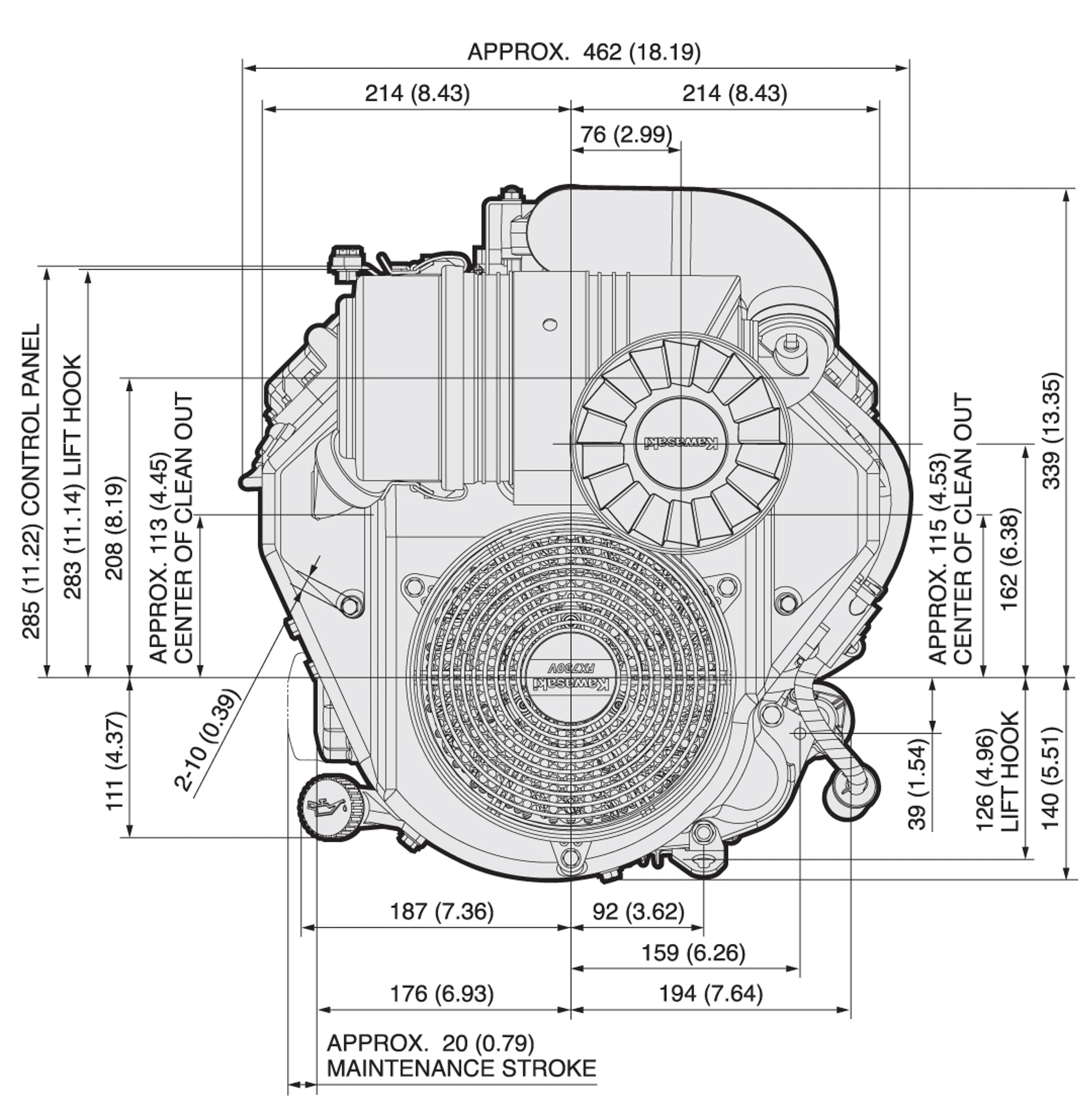

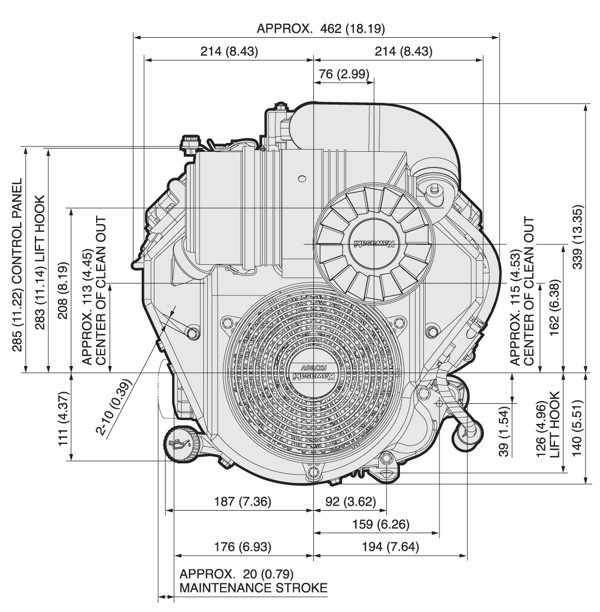

Dimensional Specifications
Related Models
Related Applications

Find A Dealer

Overview

Technical Specifications

Engine Type	Air-cooled, 4-stroke, V-twin, Vertical shaft, OHV
Number of cylinders	2
Bore x stroke	78 x 76 mm
Displacement	726cm³
Max. power	15.4 kW (20.6 hp) / 3600 rpm
Max. torque	53.7 Nm (39.6 ft.lbs) / 2000 rpm
Oil capacity (litres)	2.0 litres
Dry weight	46.0 Kg
Dimensions (L x W x H) (mm)	479 x 462 x 565

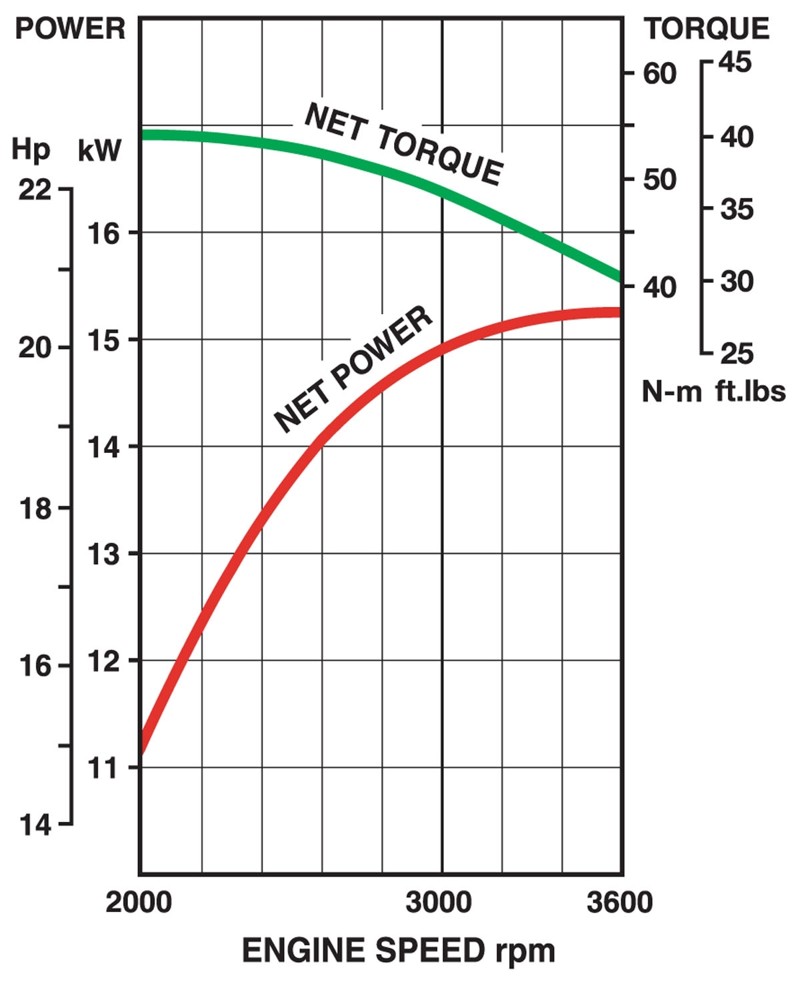

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.
