• 4 Stroke 4 Stroke
  • Vertical Shaft Vertical Shaft
  • V Twin V Twin
  • Overhead valve Overhead valve
  • Air Cooled Air Cooled
  • High performance lubrication system
  • High efficiency oil cooler
  • 3 valves per cylinder
  • Cast iron cylinder liners
  • Automatic compression release
  • Dual stage canister air filter
  • 90 degree V-twin
  • Electronic spark ignition
  • Twin barrel, internally vented carburetor with fuel shut-off solenoid
  • Spherical combustion chamber
  • Clean out ports
  • Heavy duty shift type starter
  • Overhead V-valves
  • Rotating grass screen
Show more
  • Overview
  • Options
  • Dimensional Specifications
  • Related Models
  • Related Applications
Find A Dealer

Technical Specifications

Engine Type Air-cooled, 4-stroke, V-twin, Vertical shaft, OHV
Number of cylinders 2
Bore x stroke 89.2 x 80 mm
Displacement 999 cm³
Max. power 21.6 kW (28.9 hp) / 3600 rpm
Max. torque 66.7 Nm (49.2 ft.lbs) / 2400 rpm
Oil capacity (litres) 2.35 litres
Dry weight 62.6 kg
Dimensions (L x W x H) (mm) 508 x 500 x 636

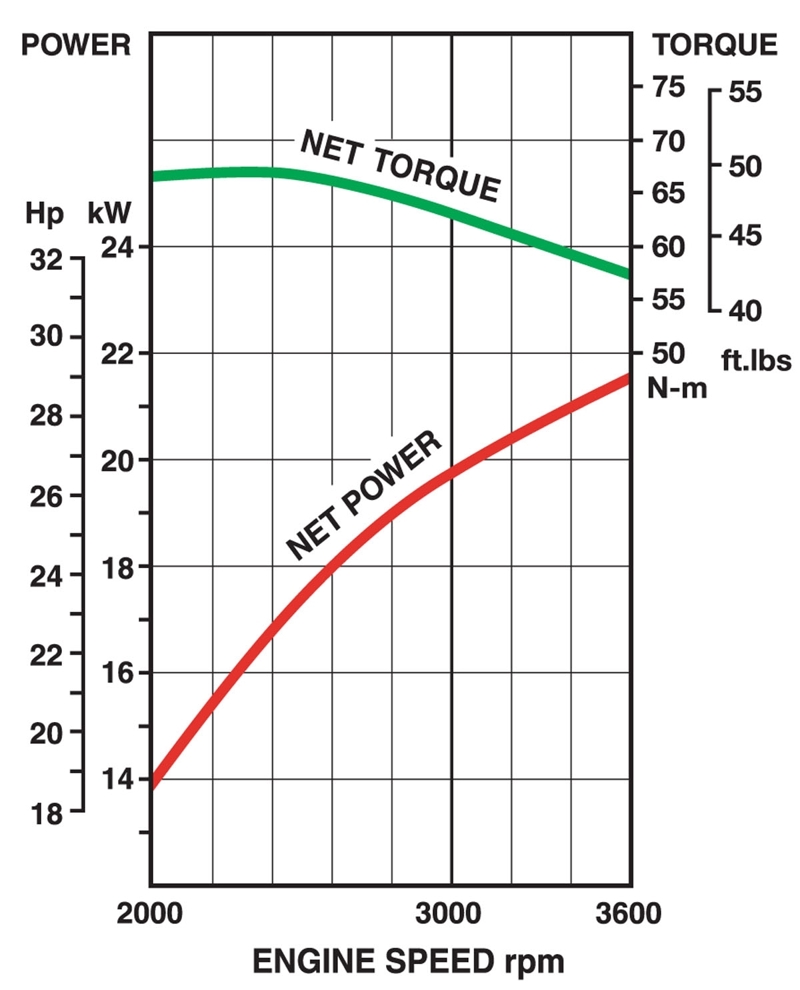

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves
  • Shaft variations
  • Various speed control system
  • Various oil drains
  • 13, 20 or 26 Amp charge coil
  • Oil pressure switches
