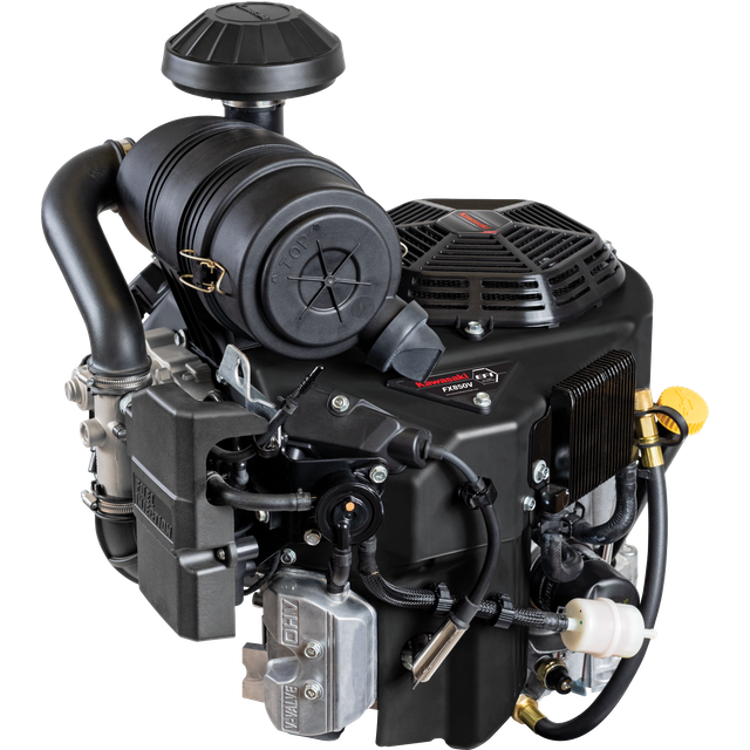

FX850V Electronic Fuel Injection (EFI)

  • 4 Stroke 4 Stroke
  • Vertical Shaft Vertical Shaft
  • V Twin V Twin
  • Overhead valve Overhead valve
  • Air Cooled Air Cooled
  • Sequential multiport fuel injection
  • High pressure fuel injection technology with electronic fuel pump
  • Integrated electronic throttle control
  • Returnless high pressure fuel system
  • Electronic controlled ignition timing
  • High performance lubrication system
  • Electronic altitude compensation
  • Cast iron cylinder liners
  • Proven open loop design
  • Automatic compression release
  • Dual stage canister air filter
  • Metal engine cover
  • 90 degree V-twin
  • Spherical combustion chamber
  • Clean out ports
  • Heavy duty shift type starter
  • Overhead V-valves
  • Rotating grass screen
  • Integrated throttle body and ECU
Show more
  • Overview
  • Options
  • Dimensional Specifications
  • Related Models
  • Related Applications
Find A Dealer

Technical Specifications

Engine Type Air-cooled, 4-stroke, V-twin, Vertical shaft, OHV
Number of cylinders 2
Bore x stroke 84.5 x 76 mm
Displacement 852 cm³
Max. power 20.2 kW (27.1 hp) 3600 rpm
Max. torque 63.2 Nm (46.6ft. lbs) 2400 rpm
Oil capacity (litres) 2.4 litres
Dry weight 59.7 kg
Dimensions (L x W x H) (mm) 524 x 515 x 620 mm

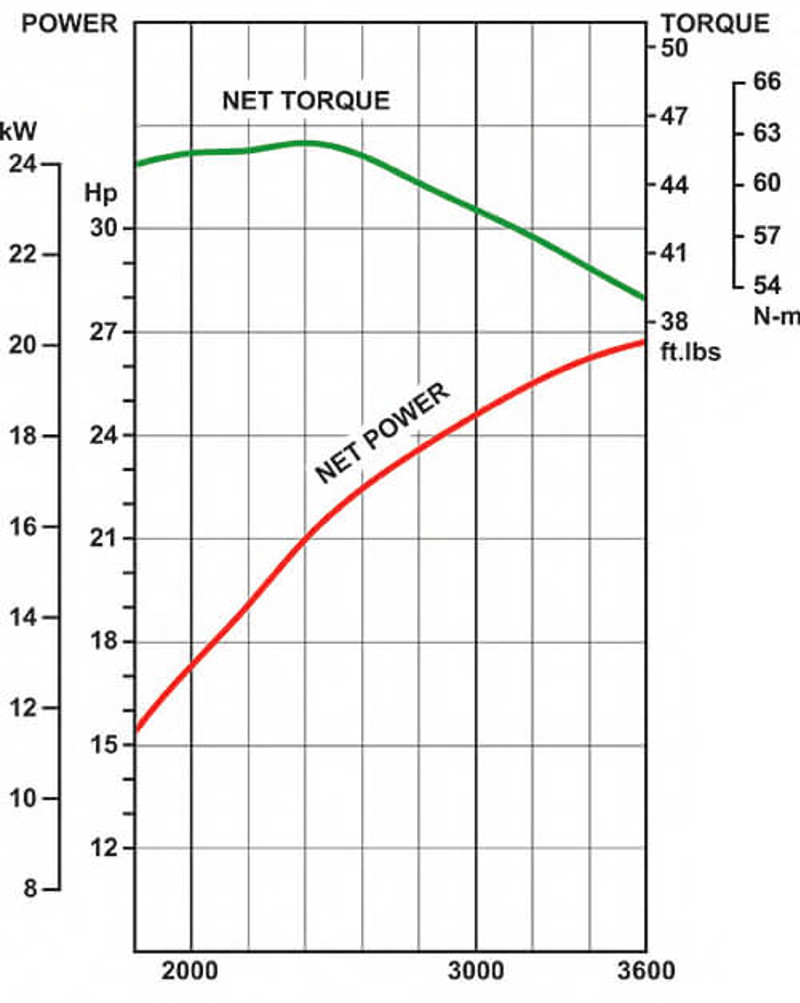

Performance curves

The power rating of this engine is the Net power rating tested on a production engine and measured in accordance with SAE J1349.

Actual power output will vary depending on numerous factors, including, but not limited to, the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

Performance curves
  • Shaft variations
  • 30 Amp sealed charging system
  • Various speed control system
  • Various oil drains
  • Oil pressure switches
